2027 Cobalt R4 Coastal

2027 Cobalt R4 Coastal

R4 Coastal
Built for where the water takes you.

Features May Include:

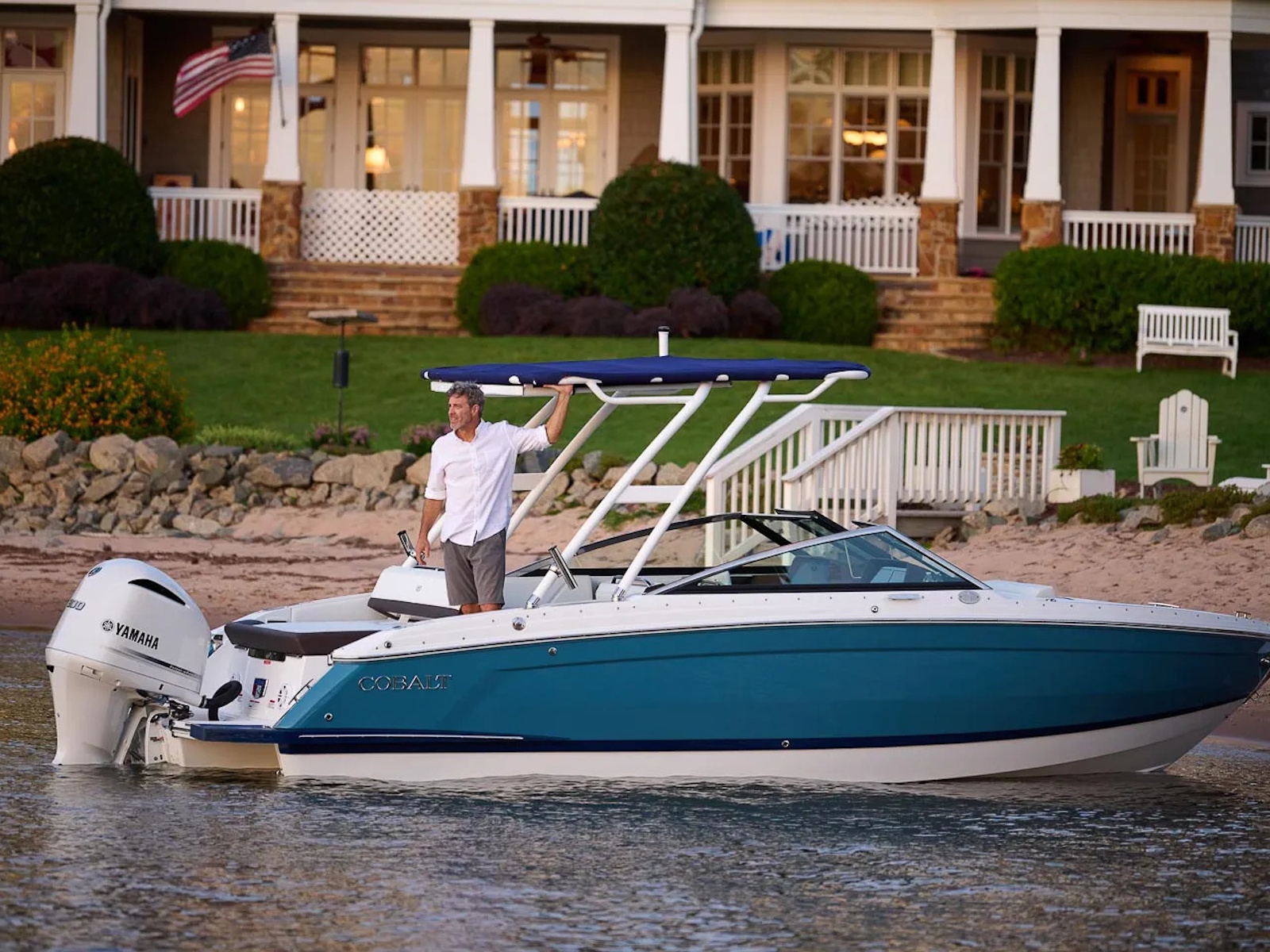

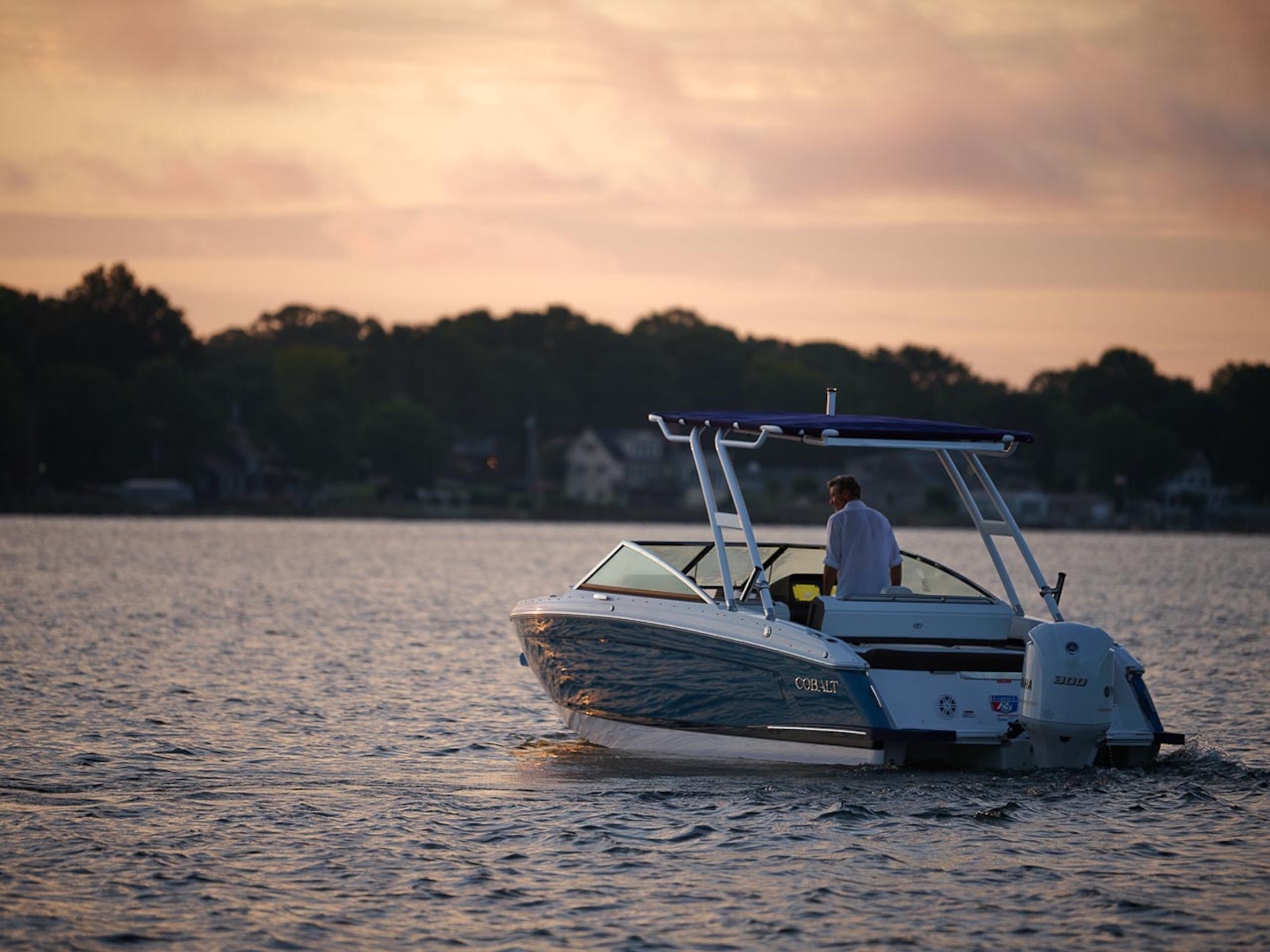

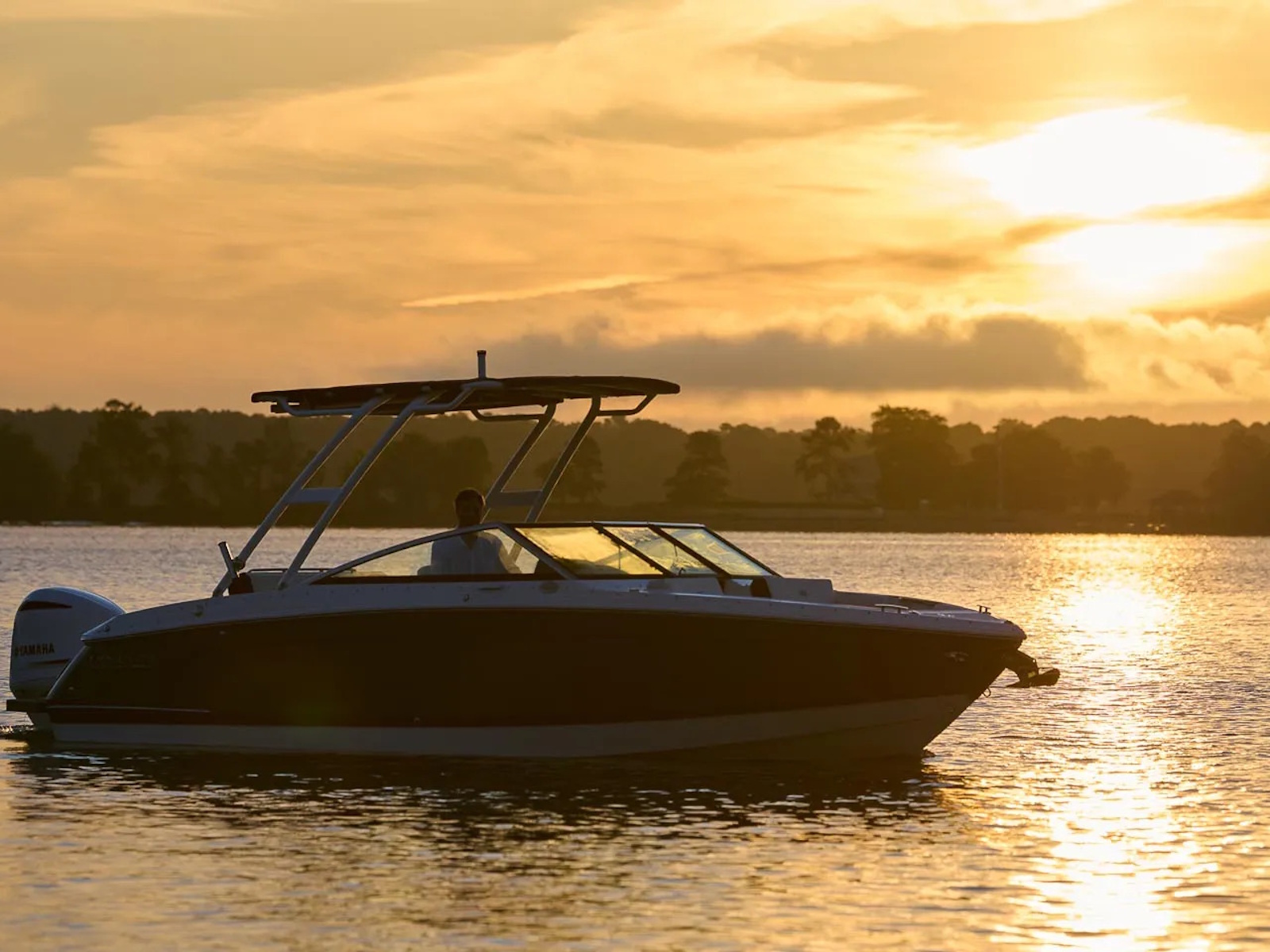

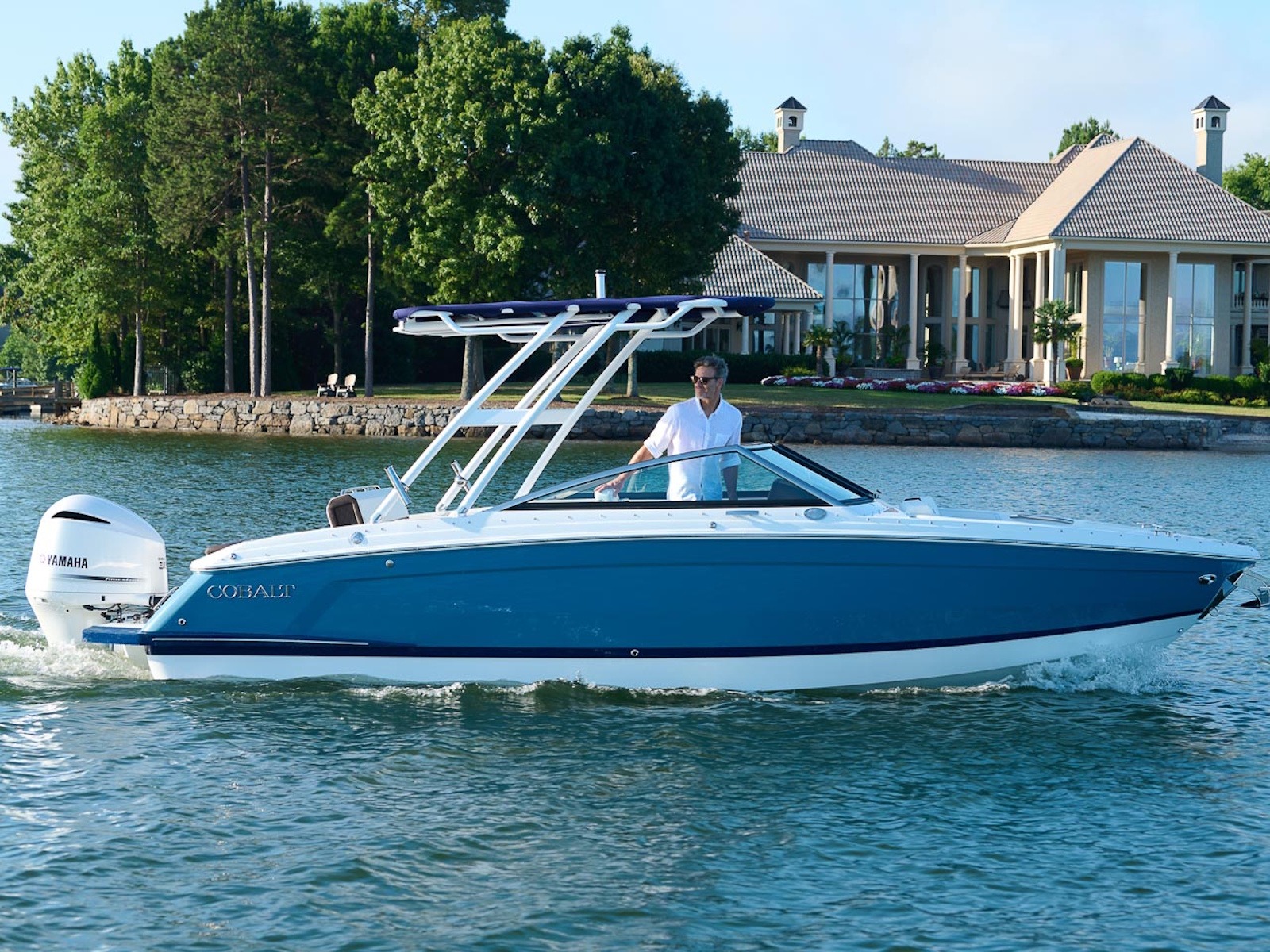

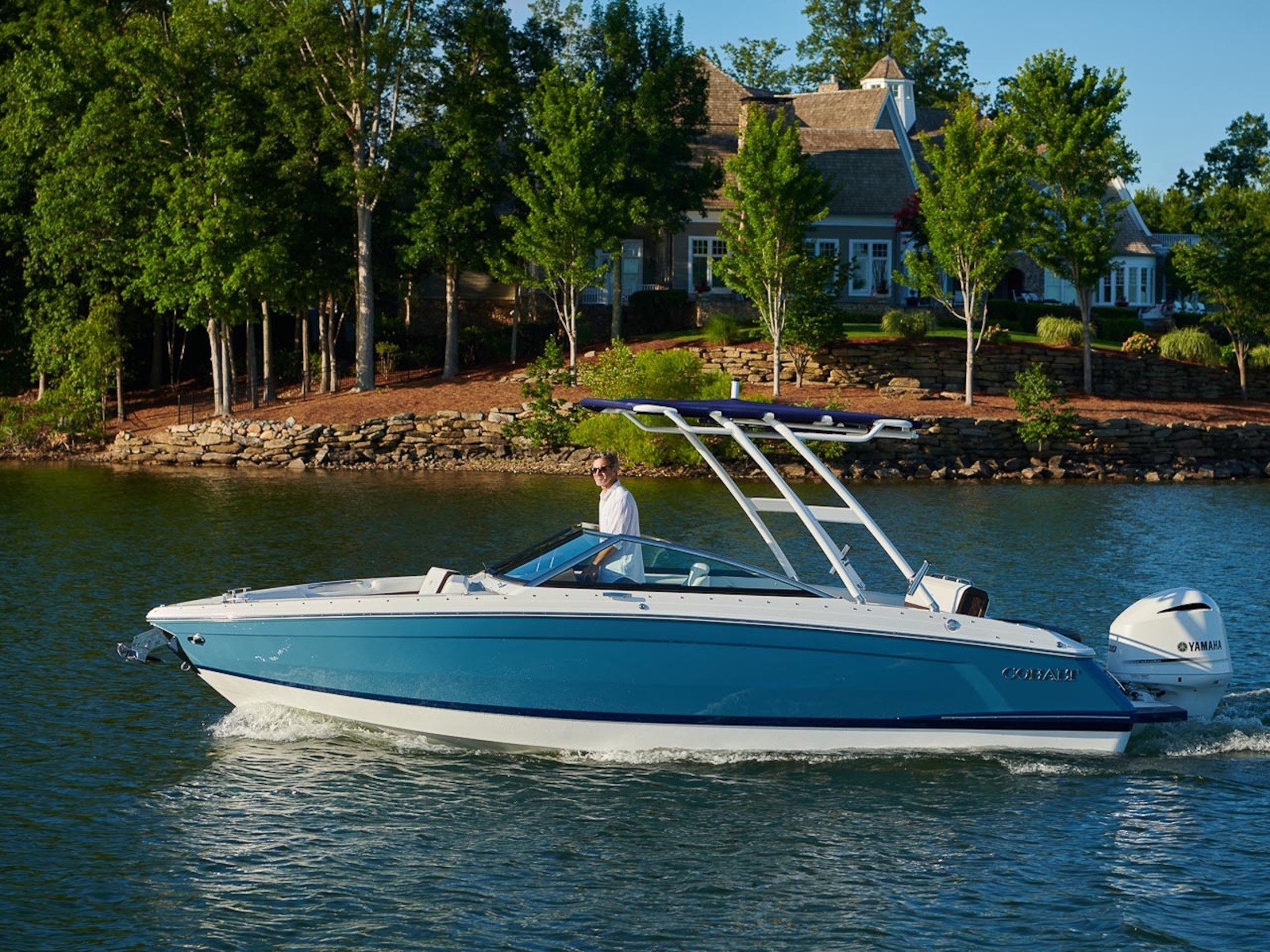

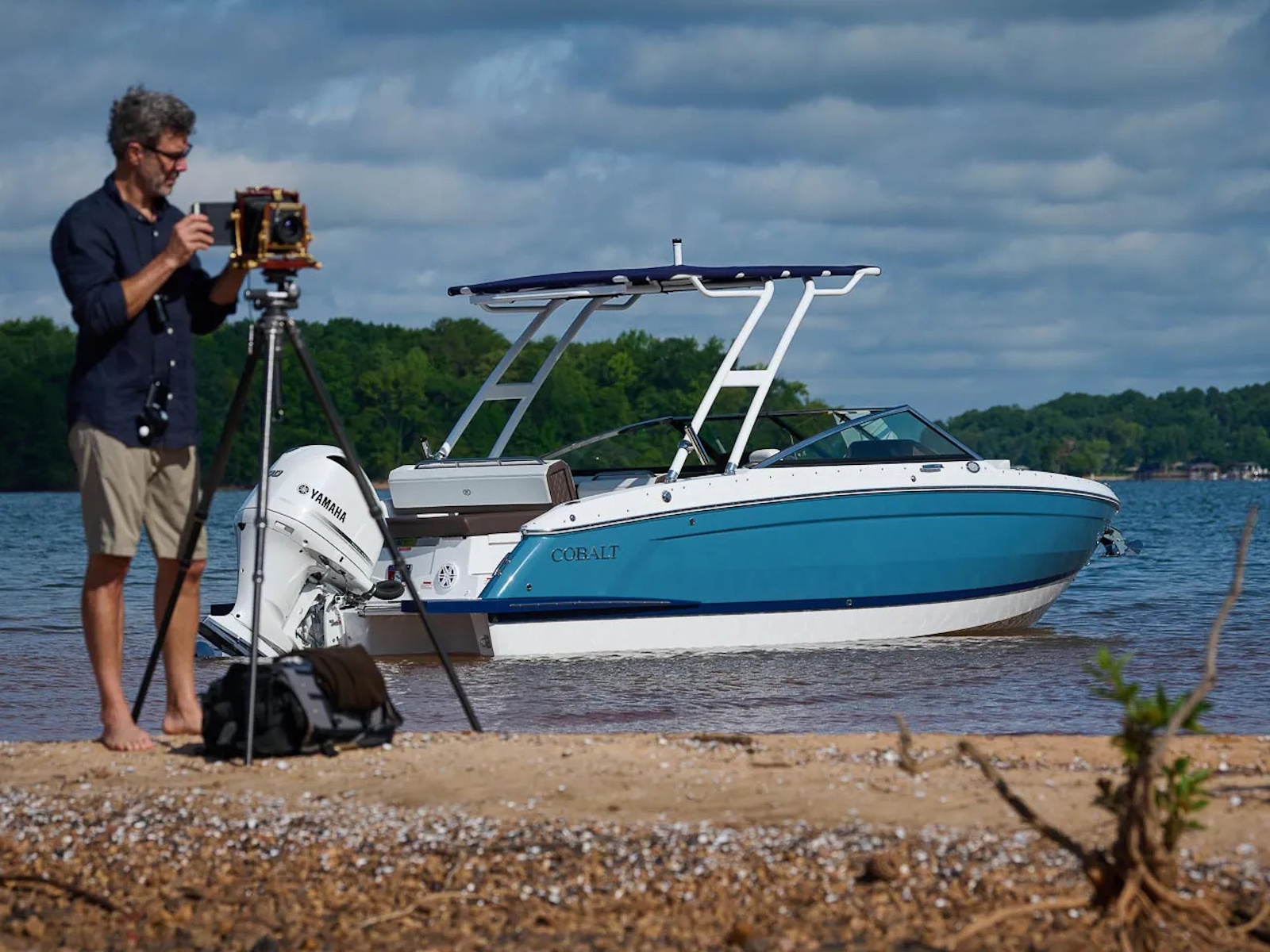

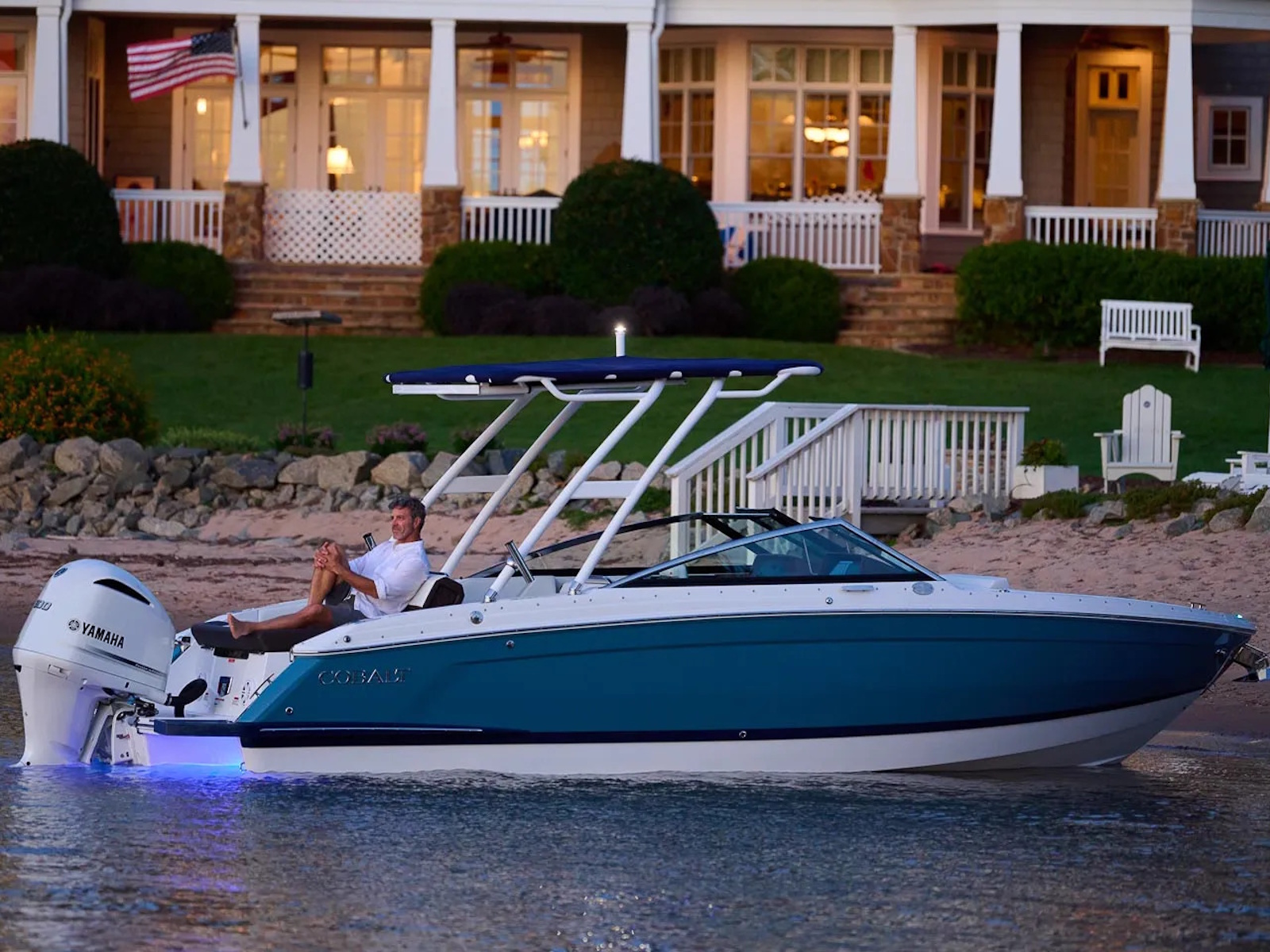

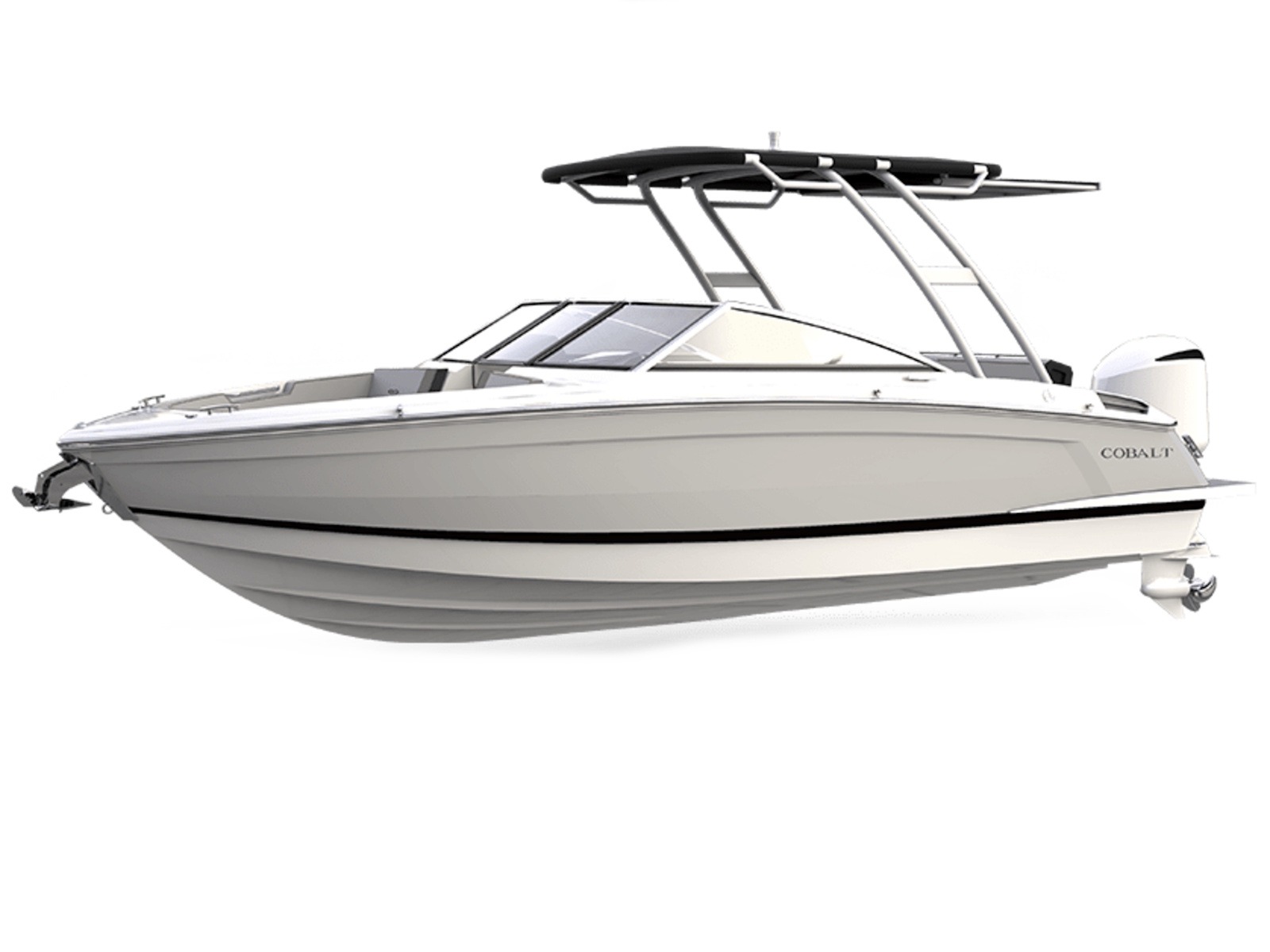

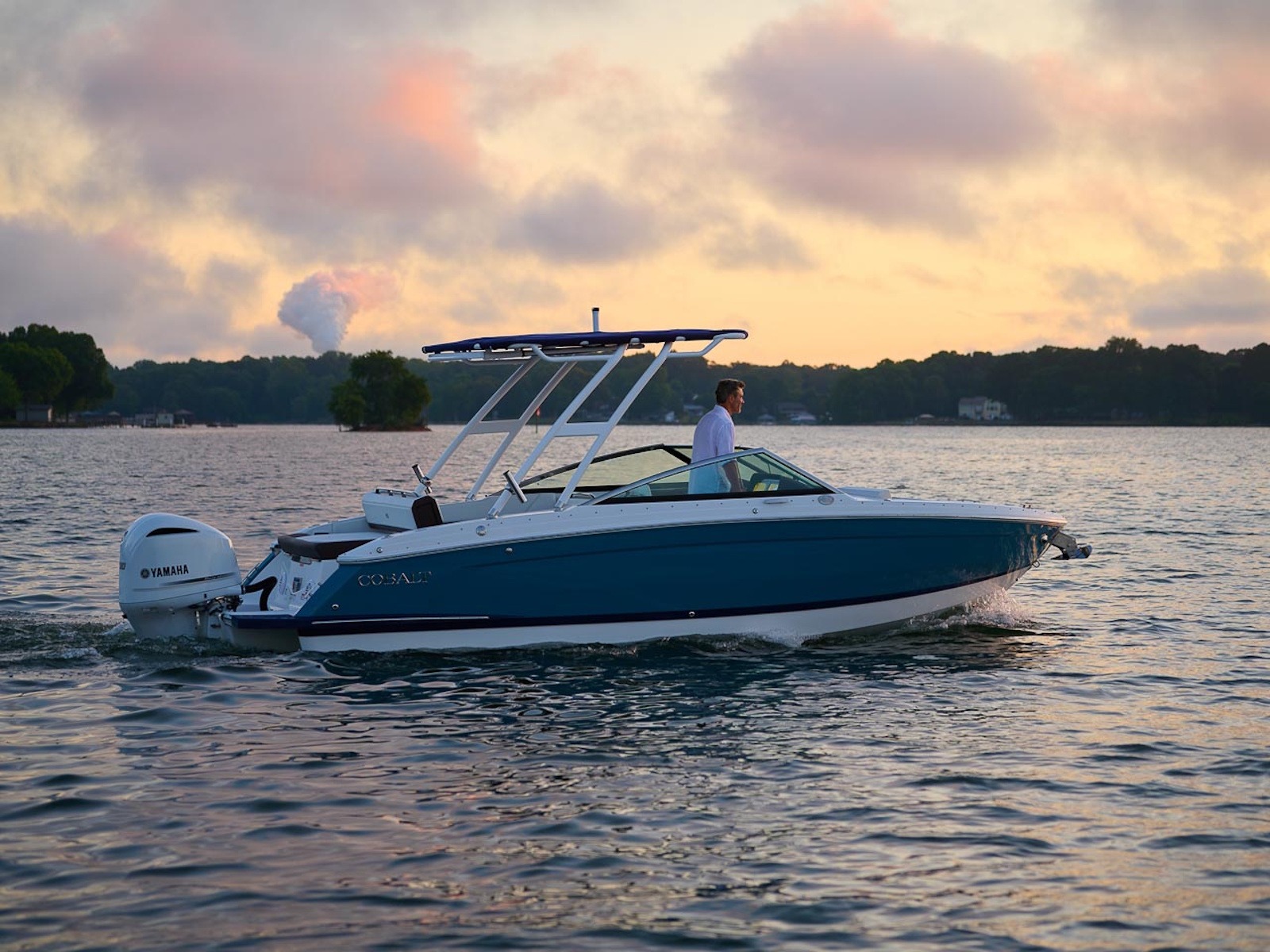

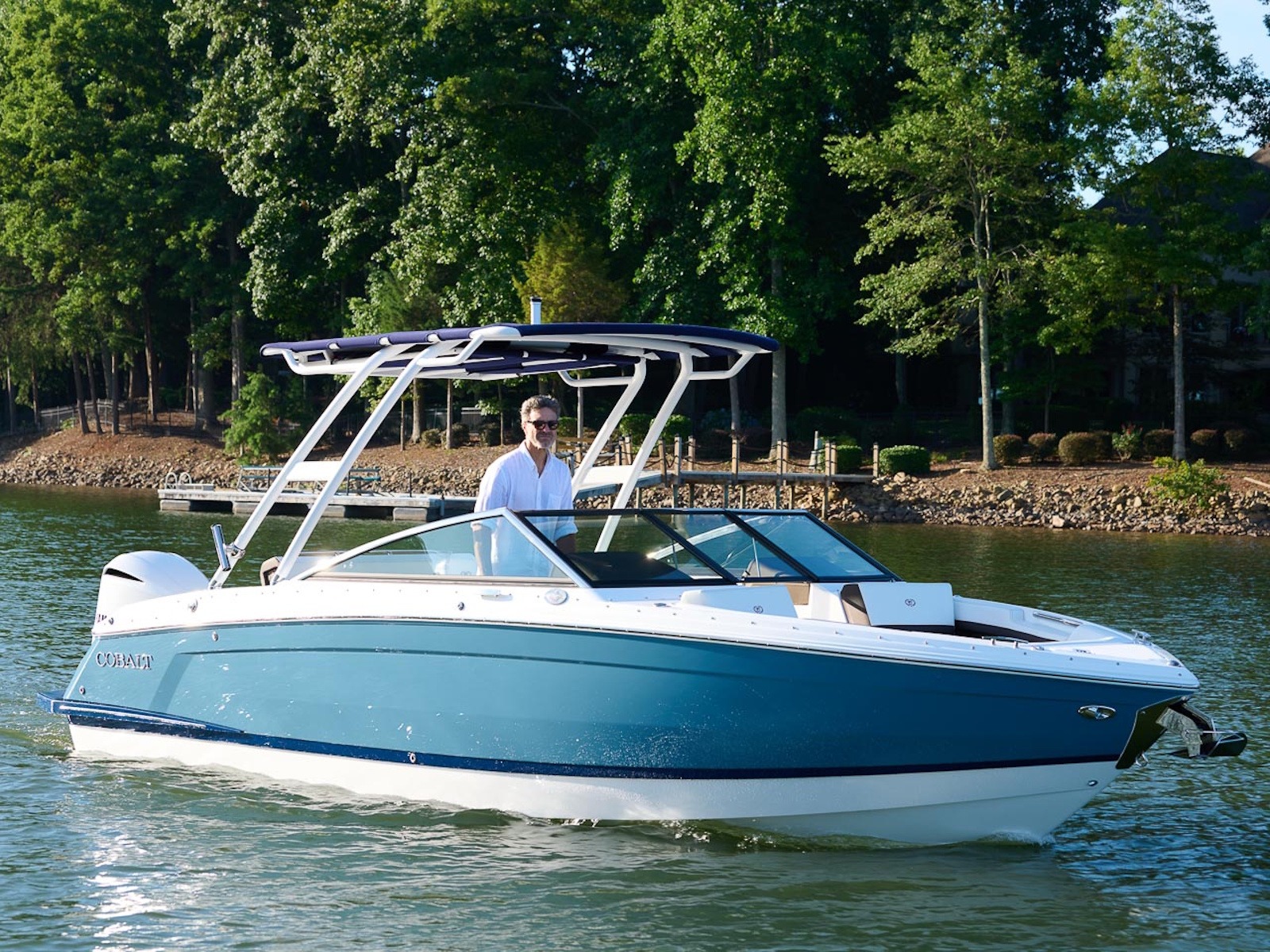

R4 Coastal Exterior

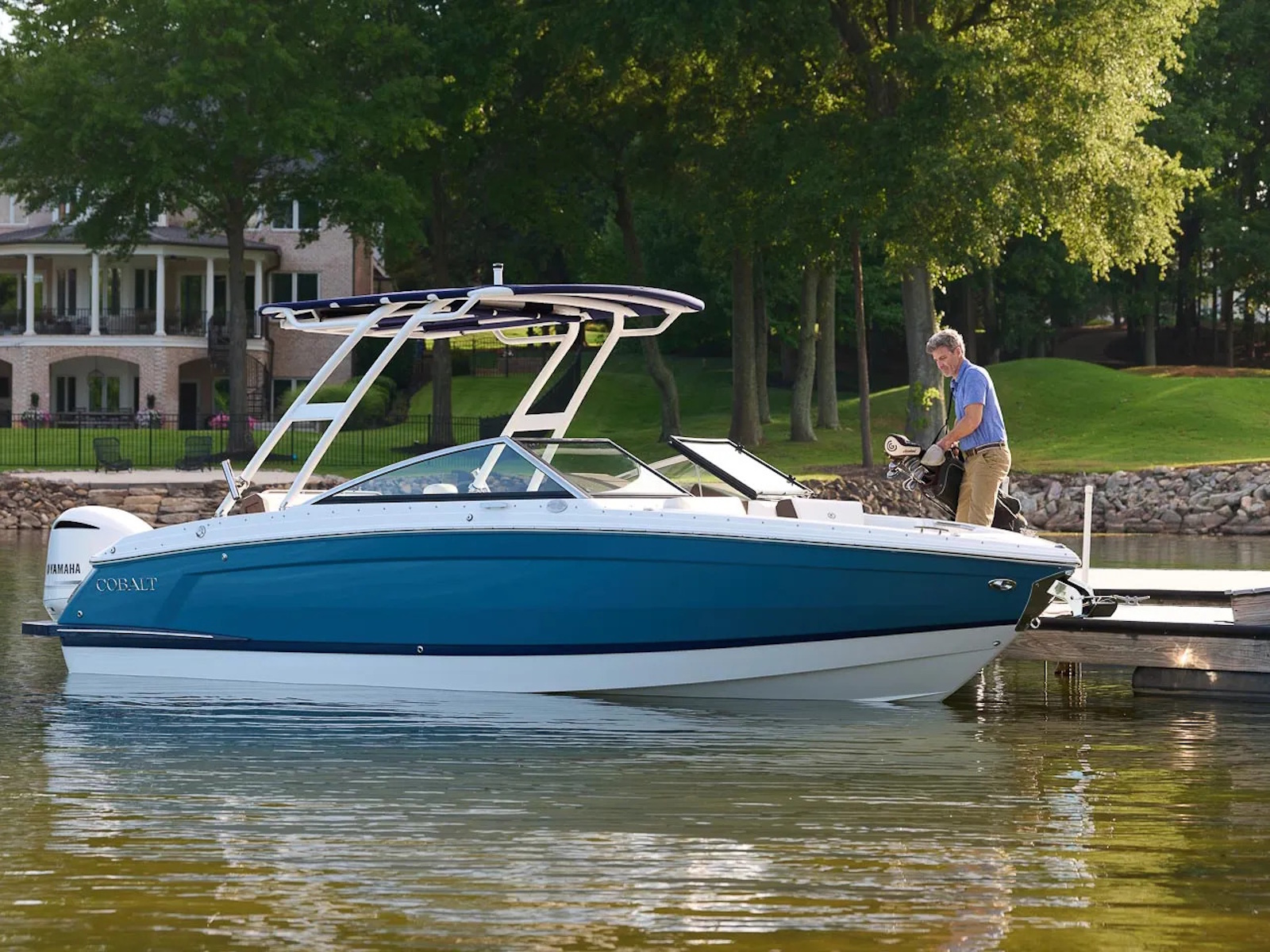

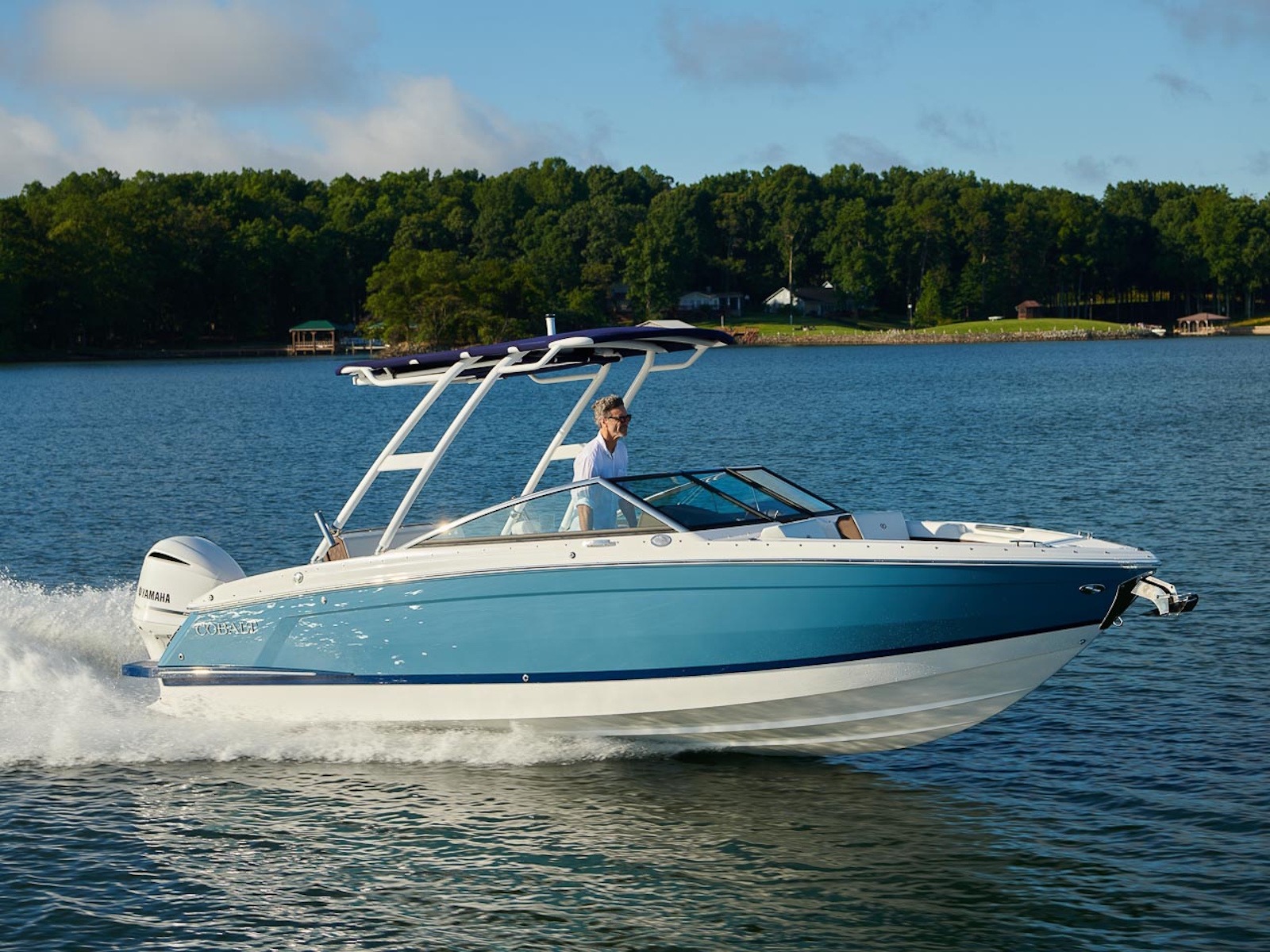

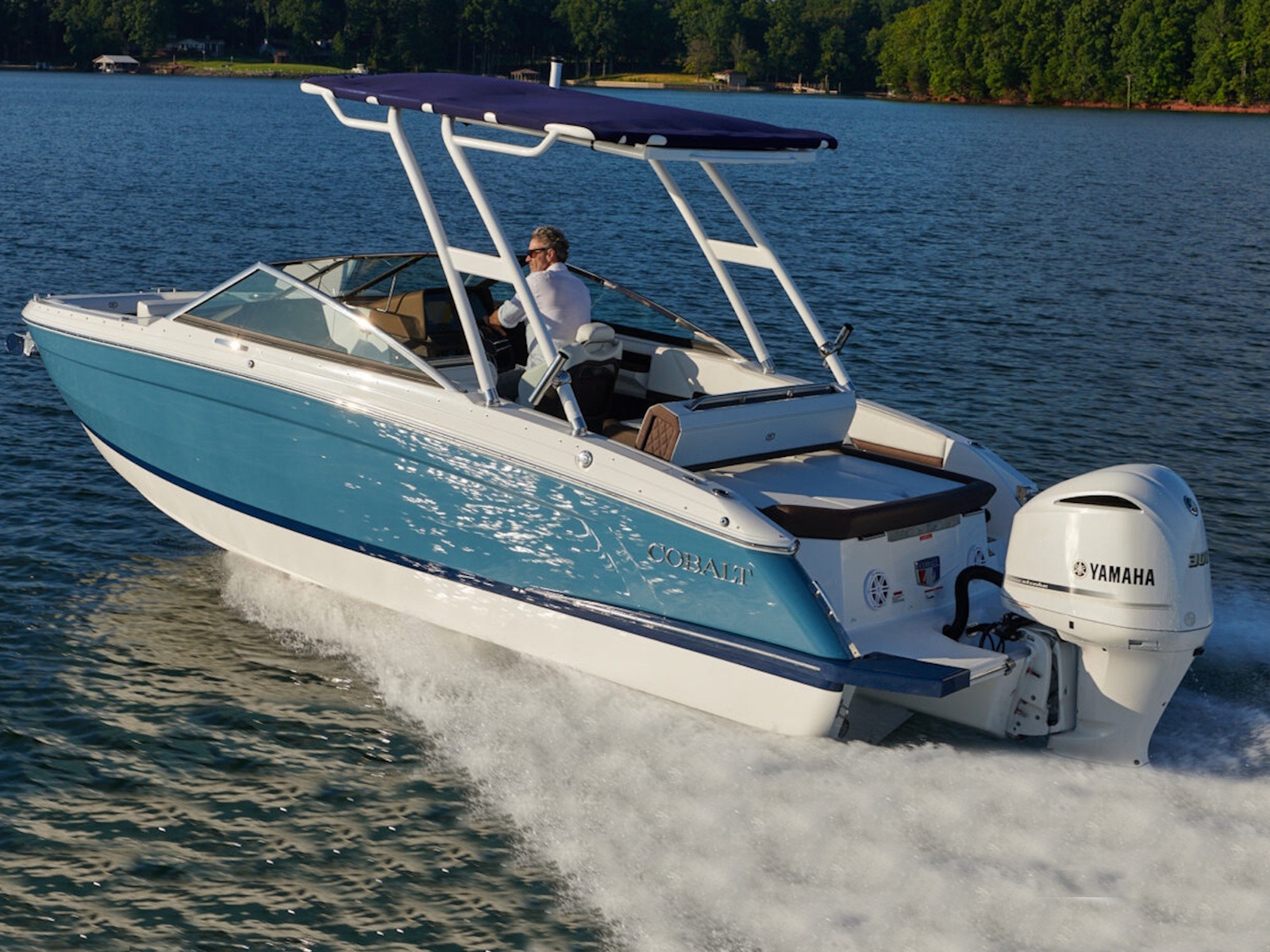

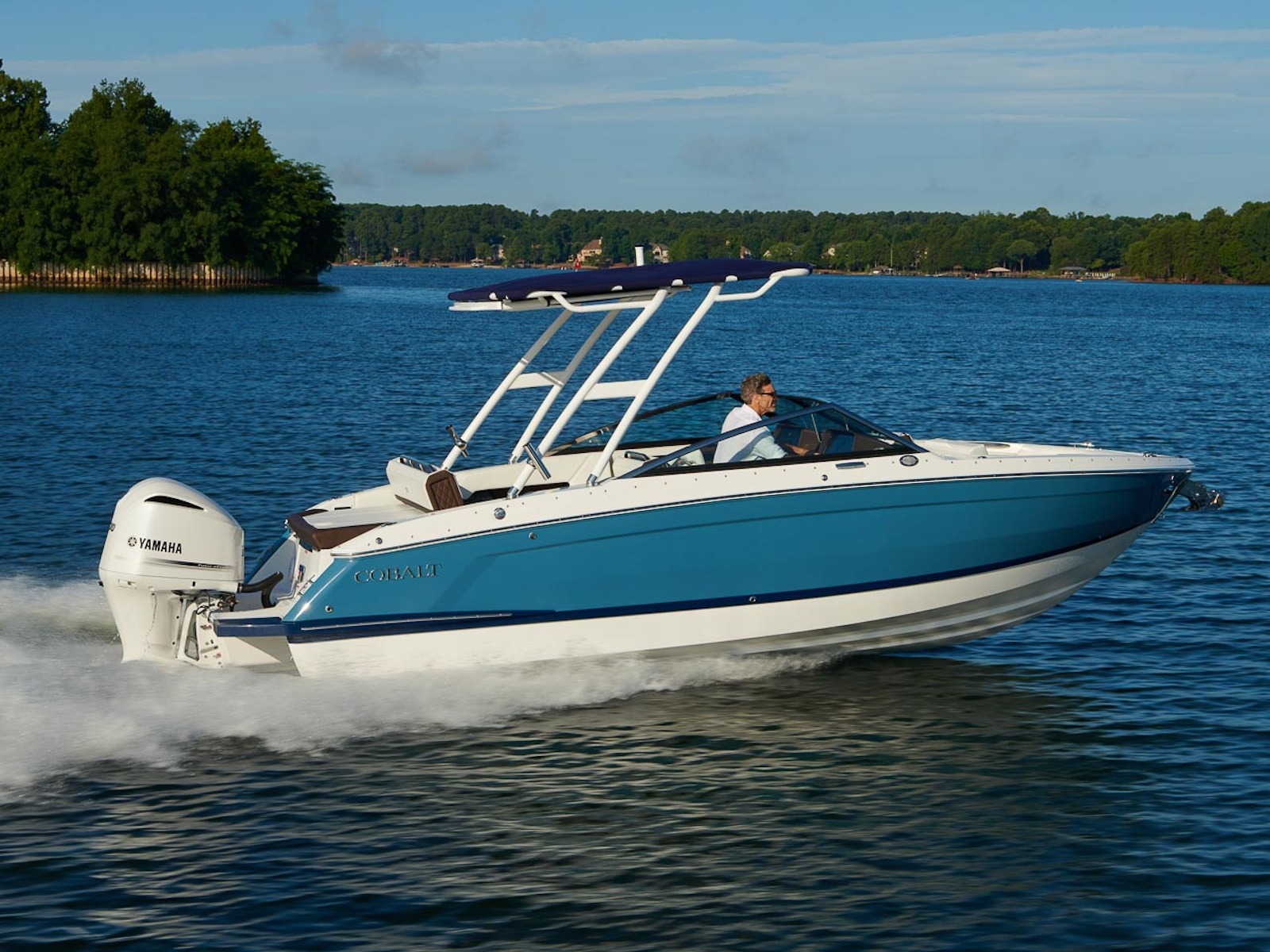

The R4 Coastal exterior features a sleek, low-profile design that enhances performance and improves ease of trailering and storage. Built specifically for outboard power, it delivers a smooth, capable ride across lakes, rivers, and coastal waters.

Exterior Features

Stainless Steel Windshield Trim

• Stainless steel windshield trim adds durability and a refined finish while helping reduce heat buildup for a cooler touch in the sun.

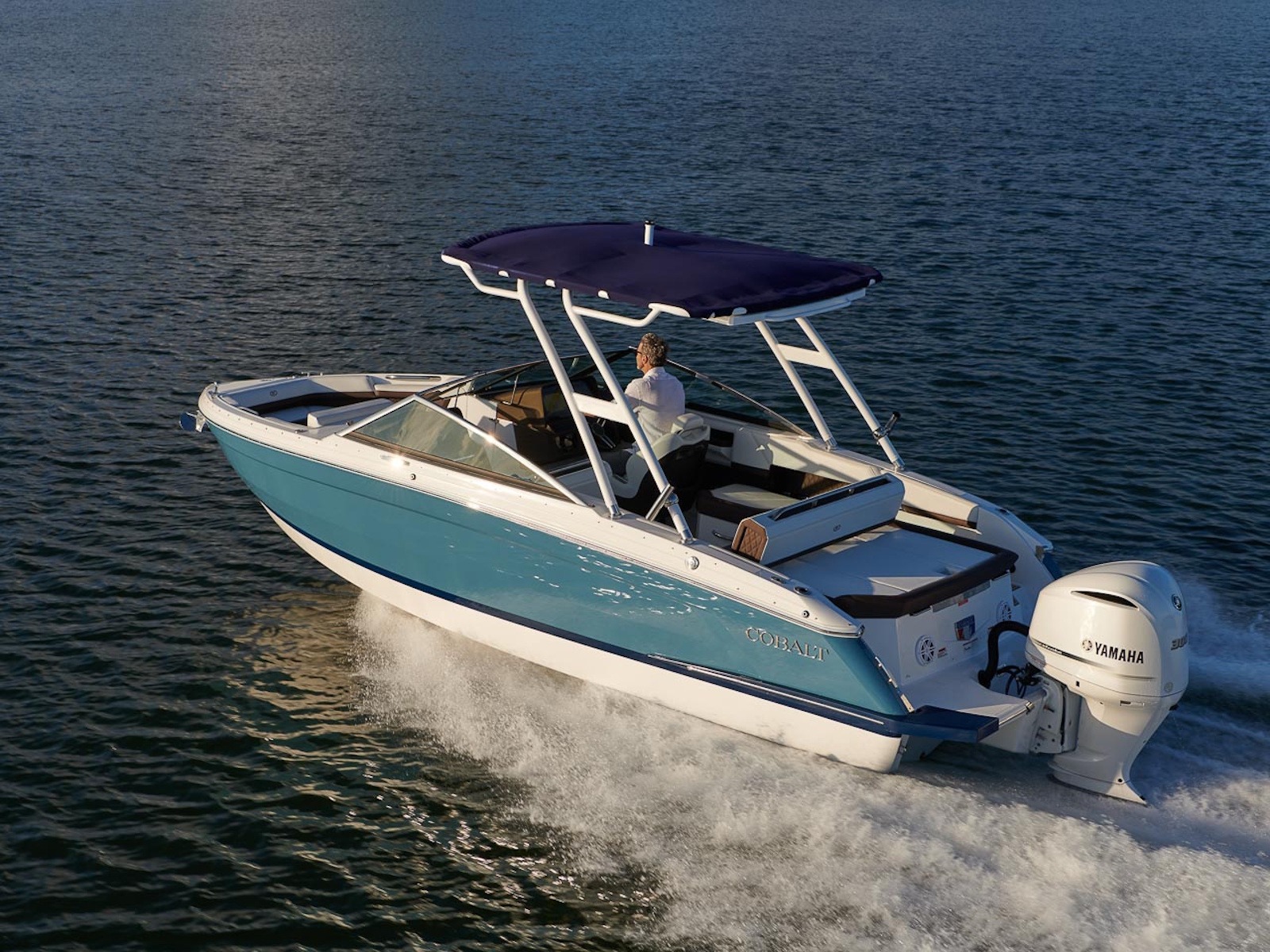

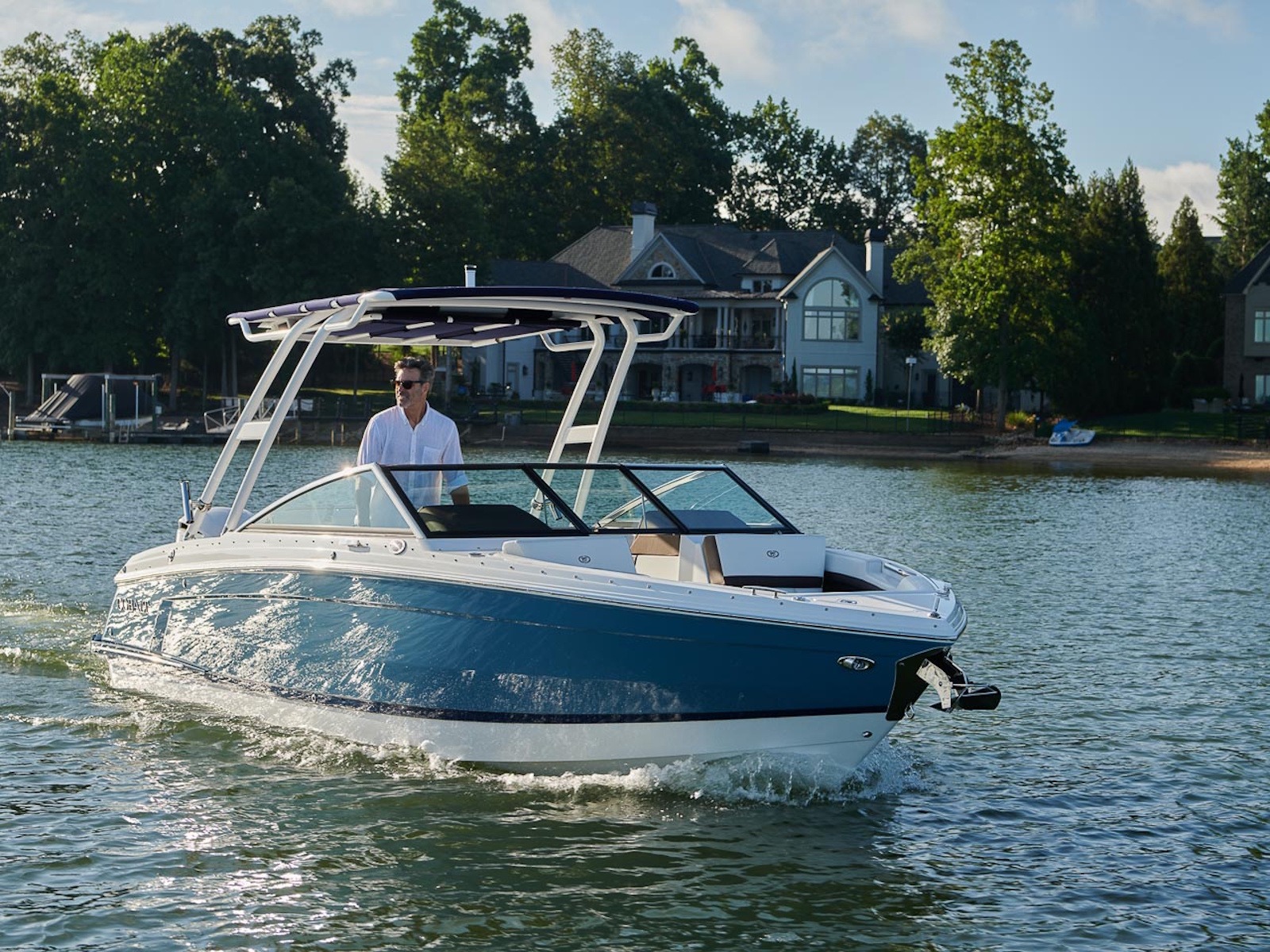

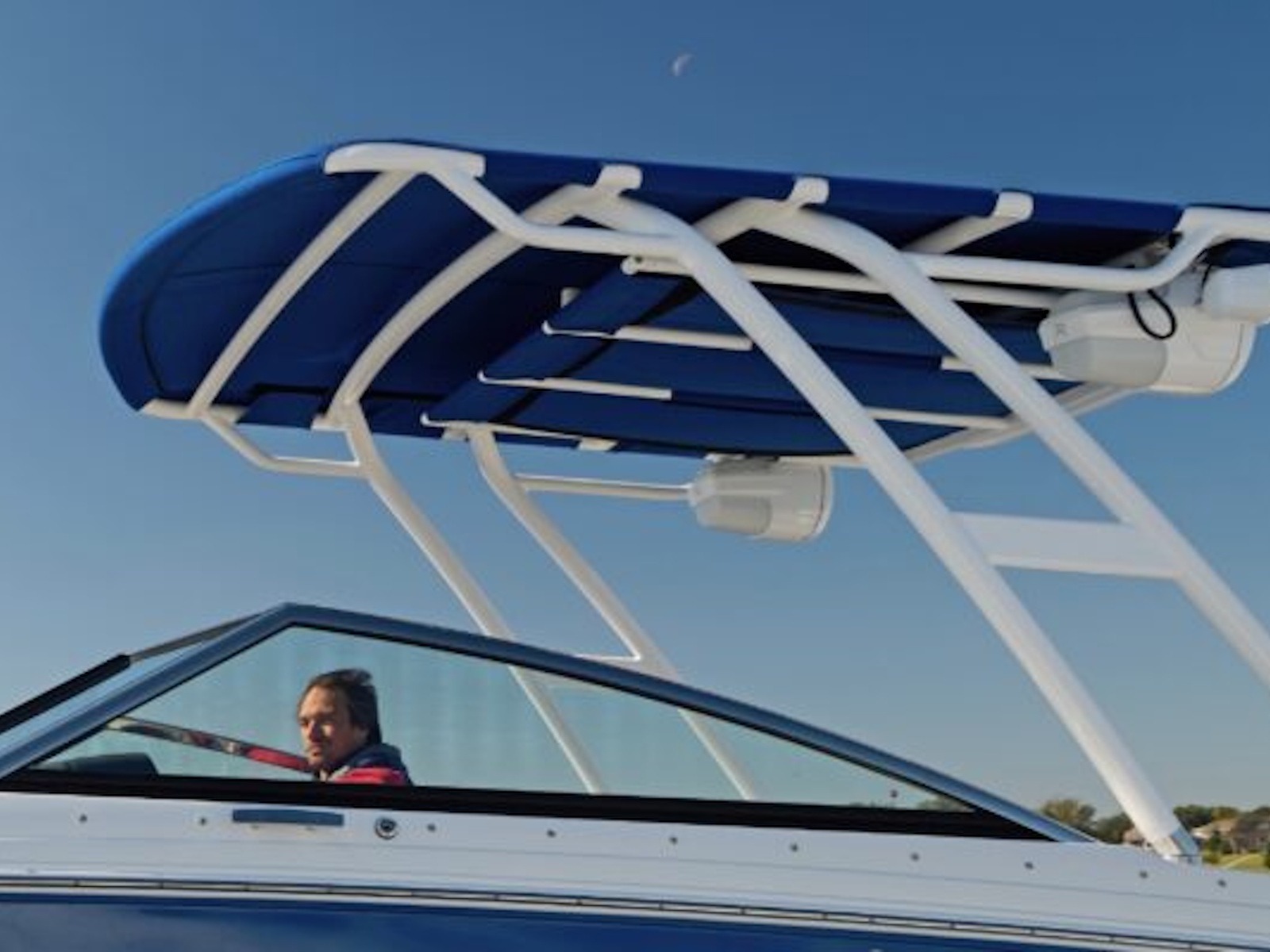

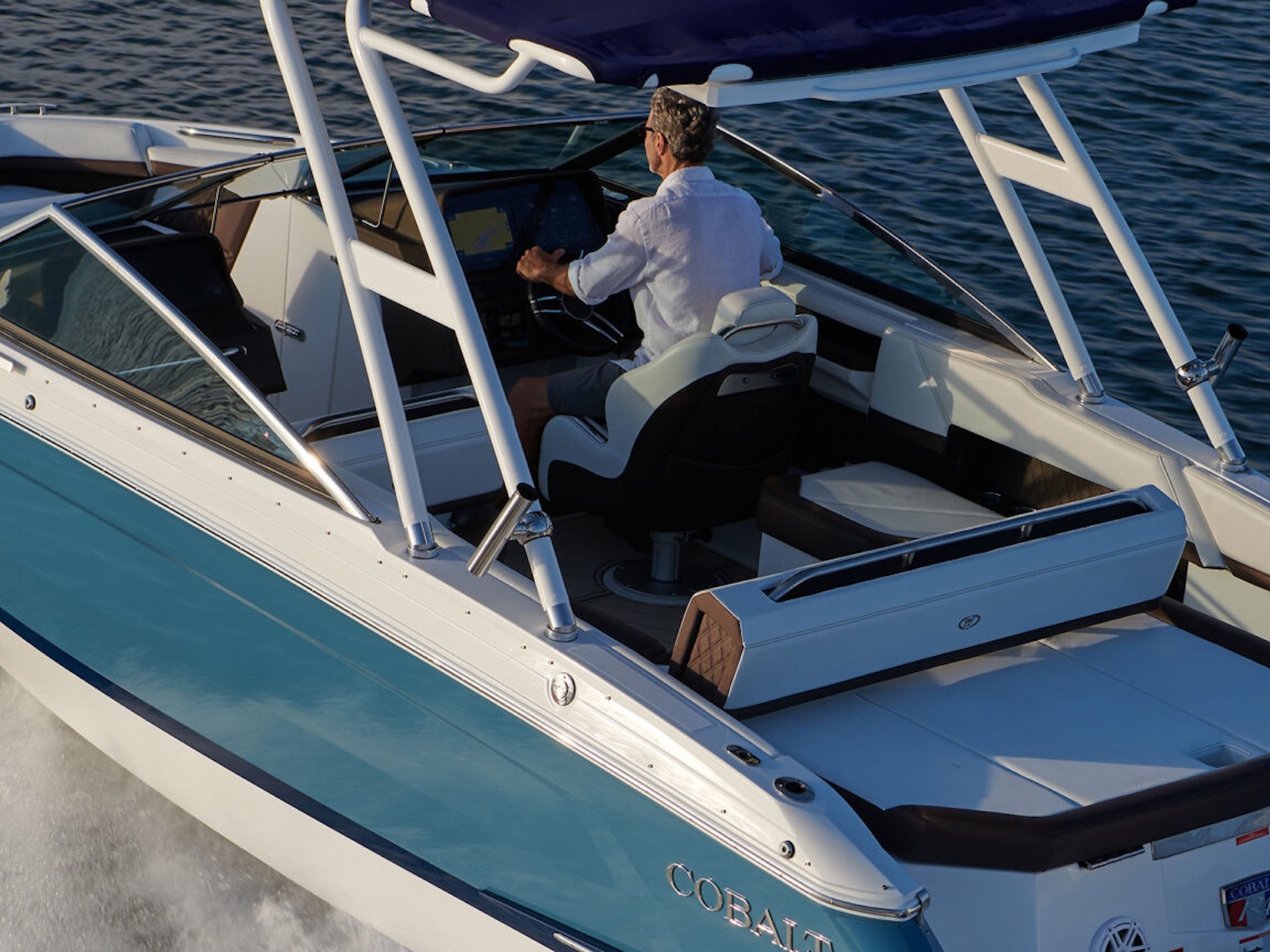

Sport Tower with Sunshade

• The sport tower with sunshade provides overhead coverage for the cockpit with a durable, mounted design. An additional aft extension offers expanded shade for rear seating.

Coastal Edition

• The Coastal Edition is engineered for enhanced saltwater durability and long-term performance. It includes corrosion-resistant stainless steel components, watertight electrical systems, and an advanced water management design to help protect against harsh marine environments.

Rotating Sunshade

• The Rotating Sunshade stays in place as the arch is lowered, maintaining coverage without adjustment. A rigid frame and assisted operation make it easy to use while keeping the canvas secure.

Fender Clip Package

• The Fender Clip Package offers a quick-mount system for securing fenders at optimal positions. It simplifies docking by keeping lines set and ready for use.

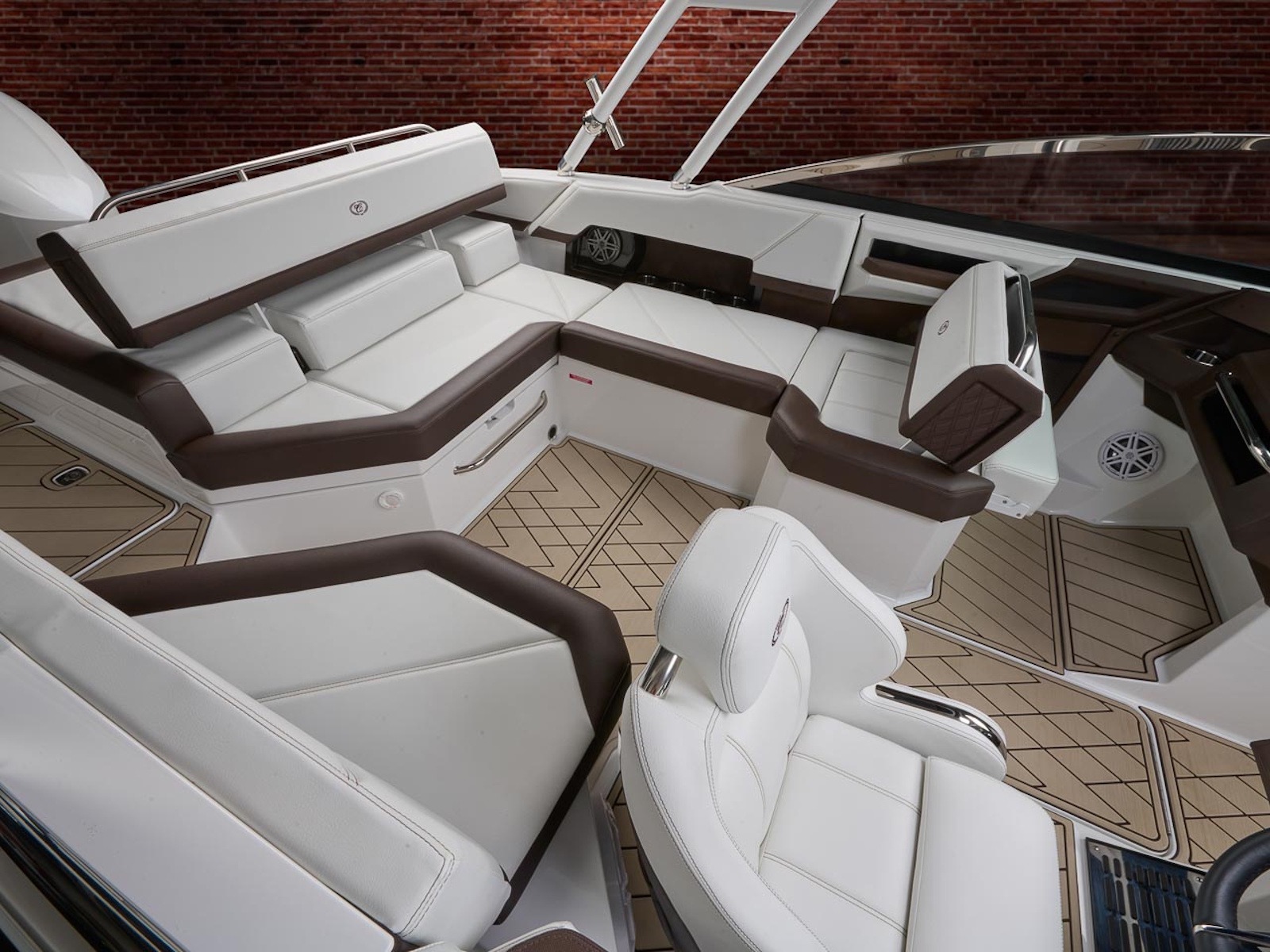

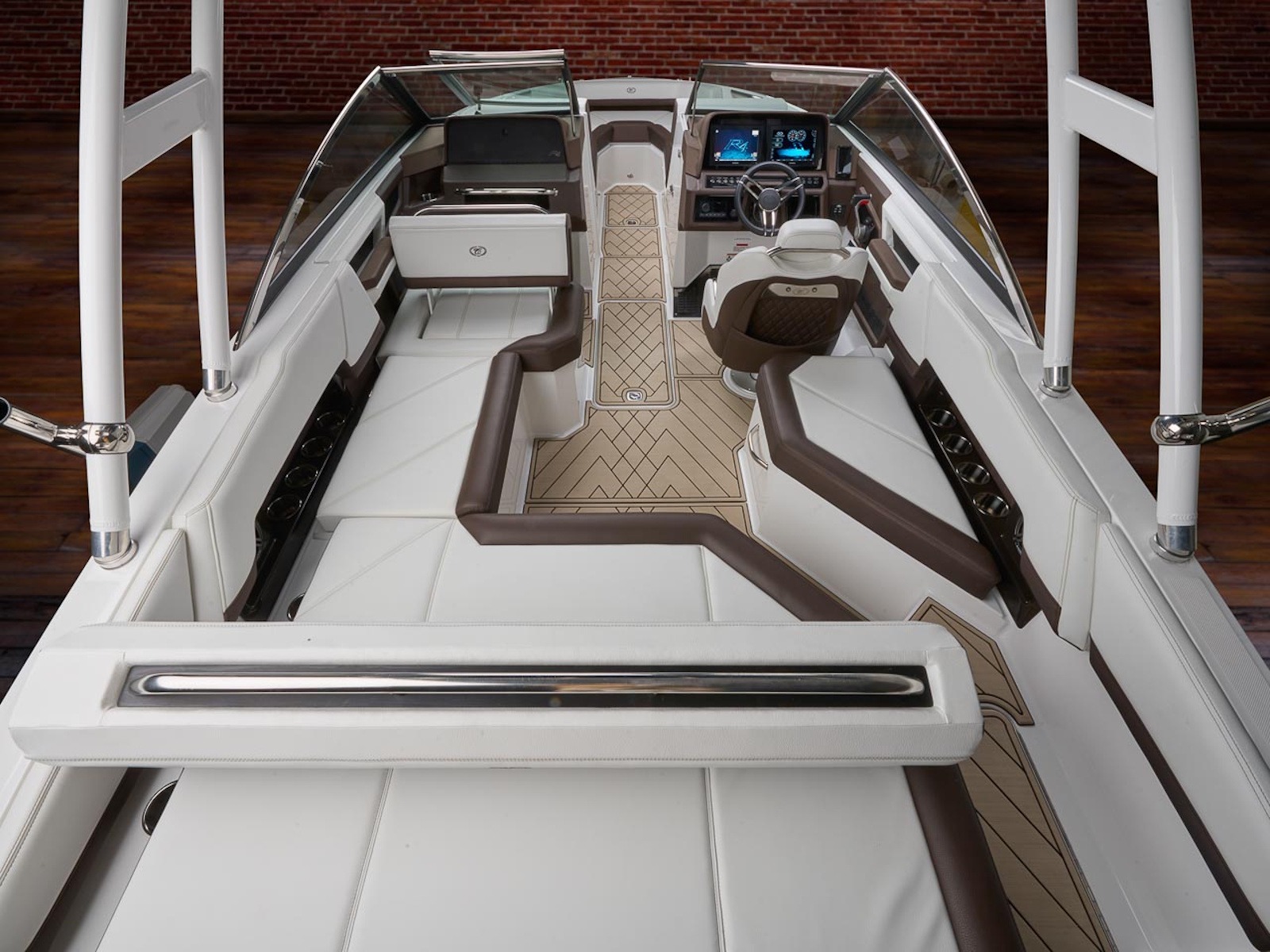

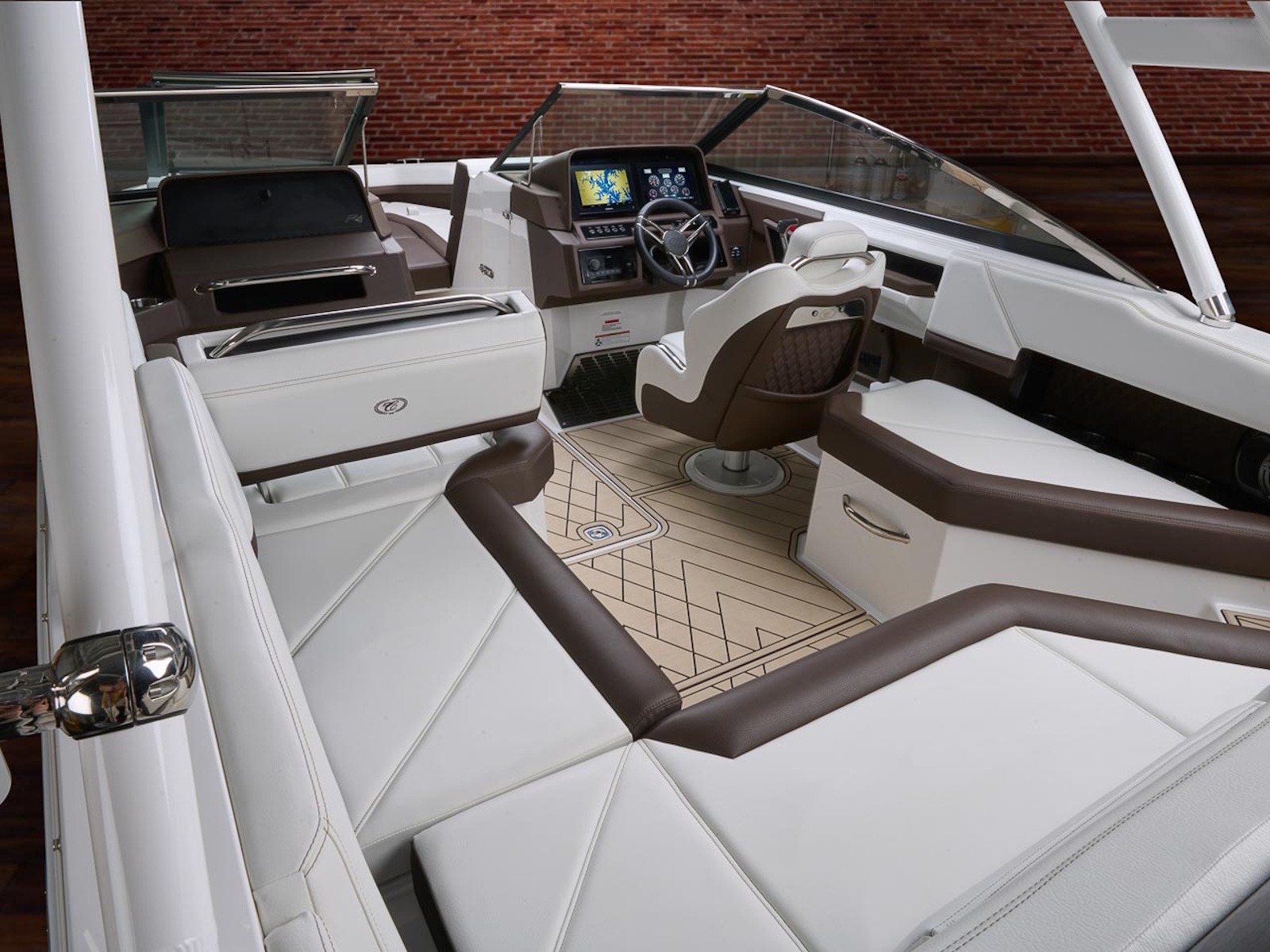

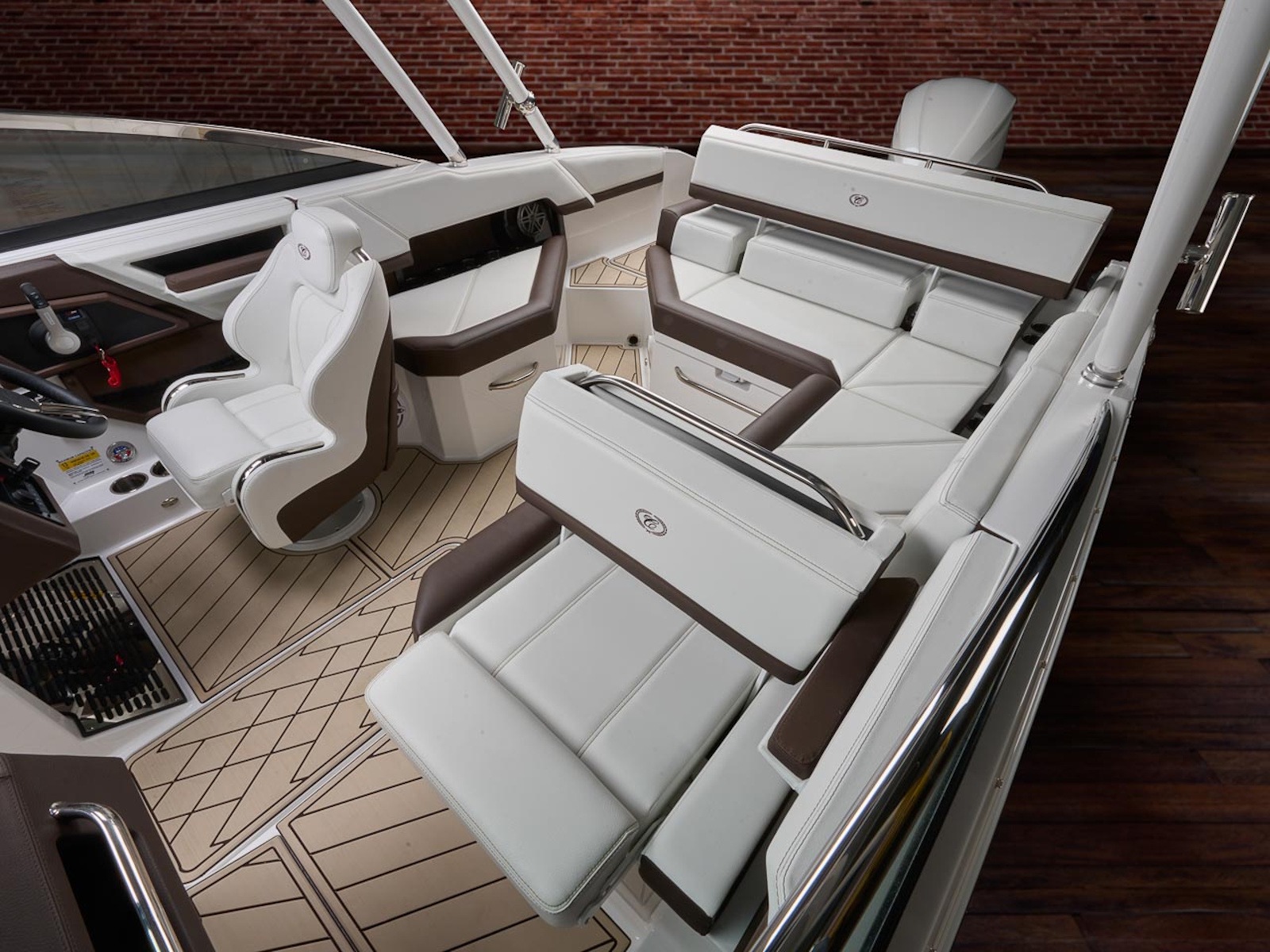

R4 Coastal Interior

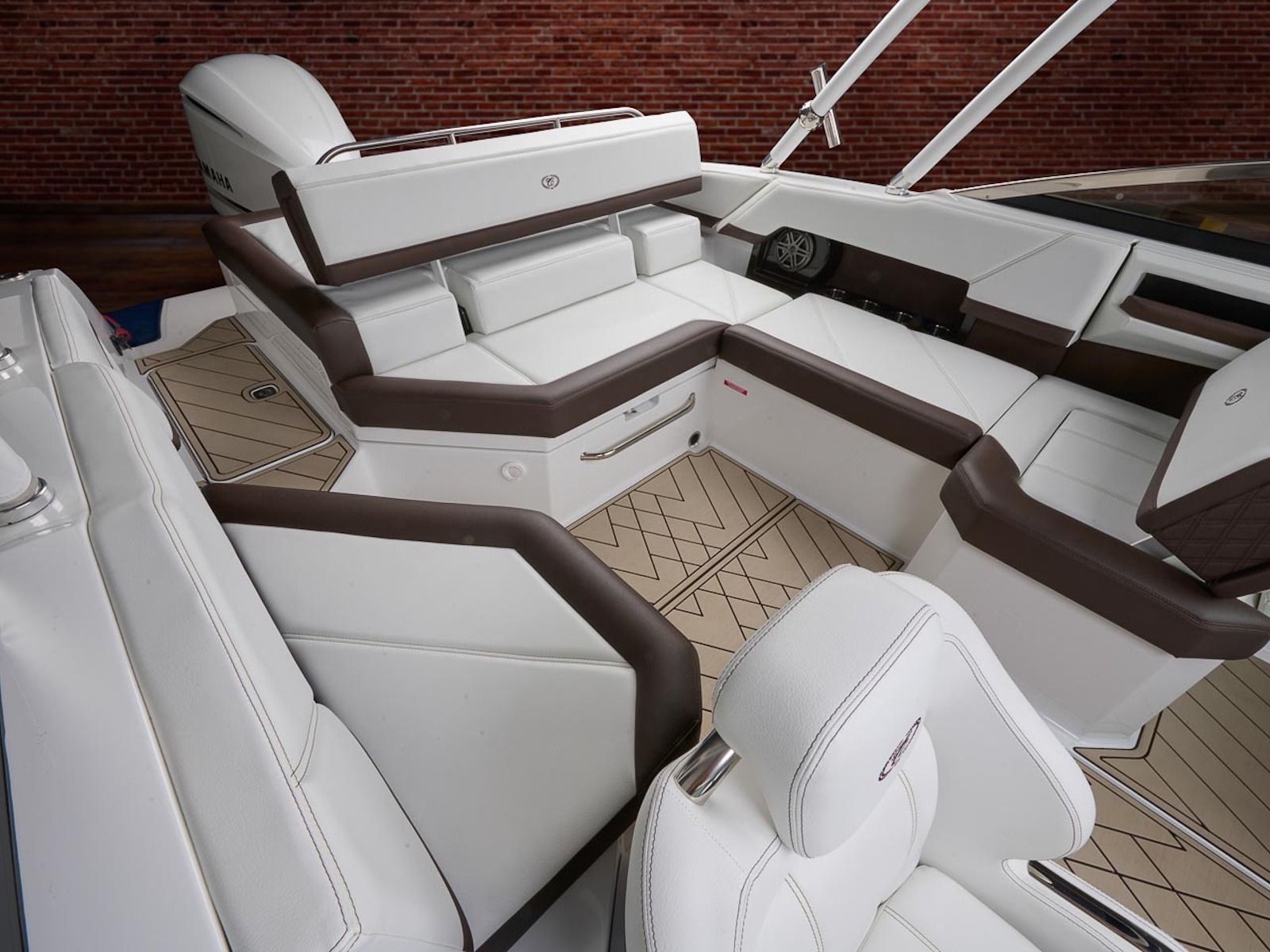

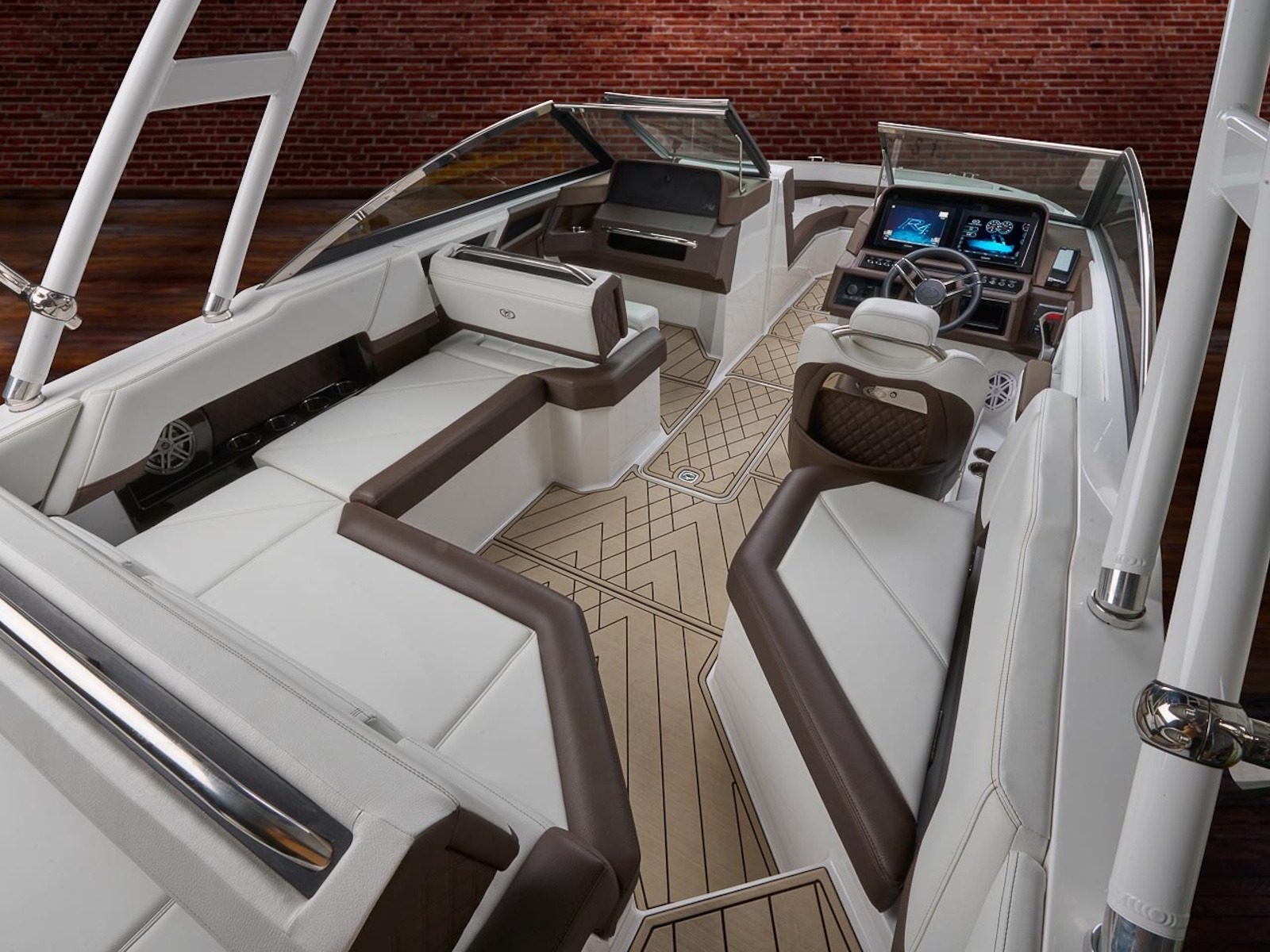

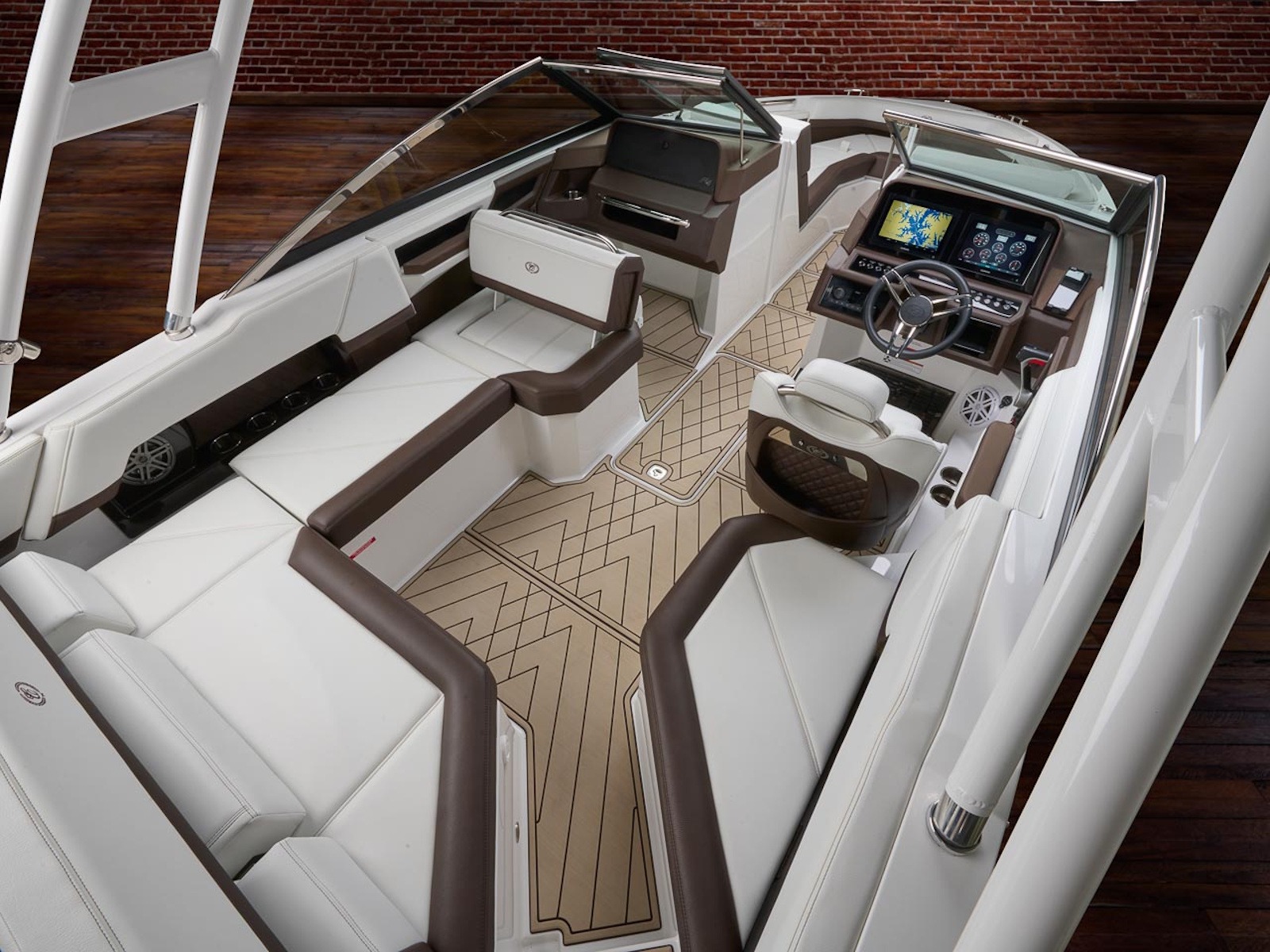

The R4 Coastal interior is designed for comfort, space, and versatility, with seating for over a dozen passengers and ample room for gear. Premium materials and thoughtful layout create a refined environment for both relaxing and entertaining on the water.

Interior Features

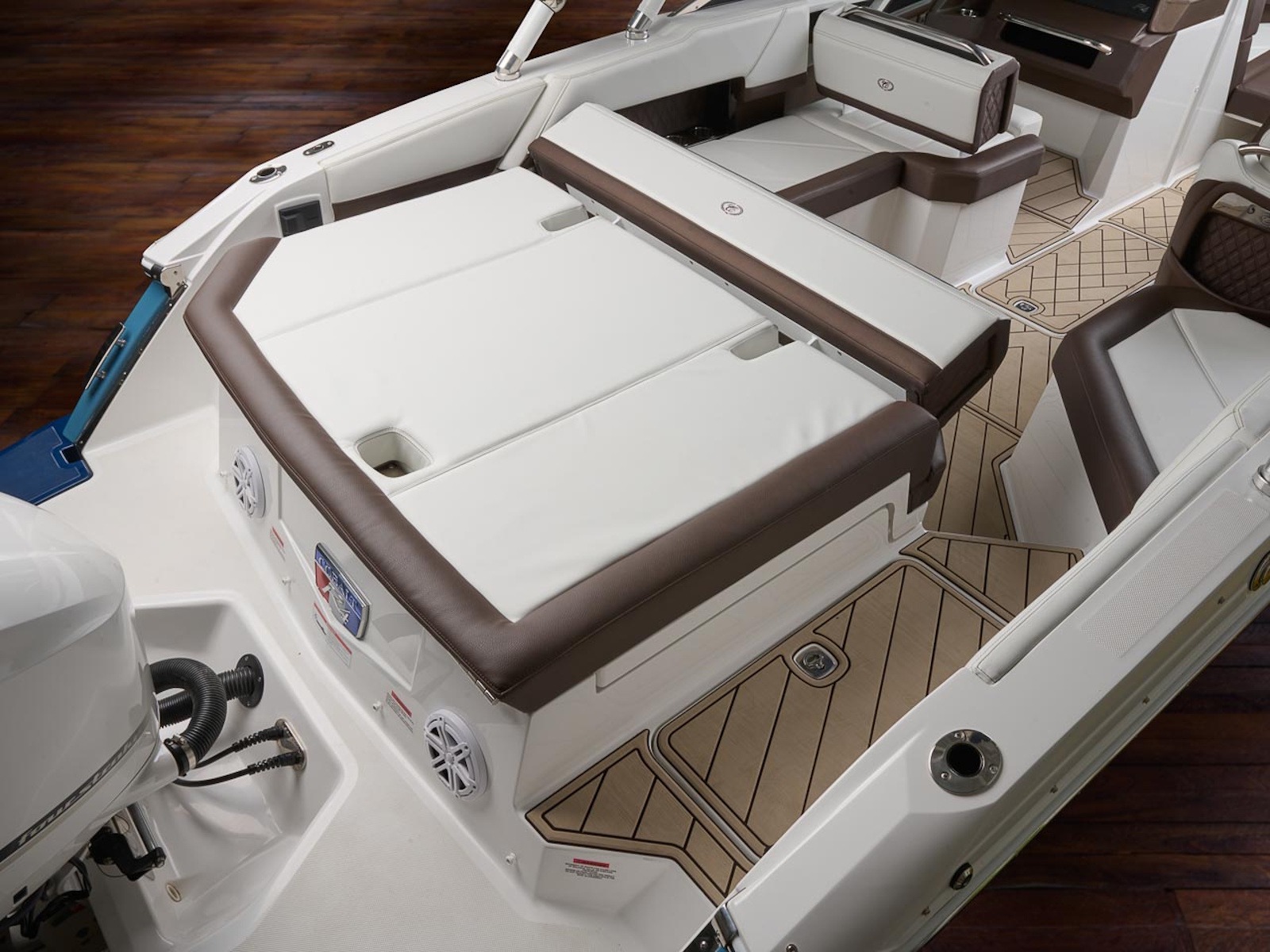

Aft Backrest

• The AFT backrest adjusts to multiple positions, allowing forward- or rear-facing seating. It also extends into a sunpad for added versatility.

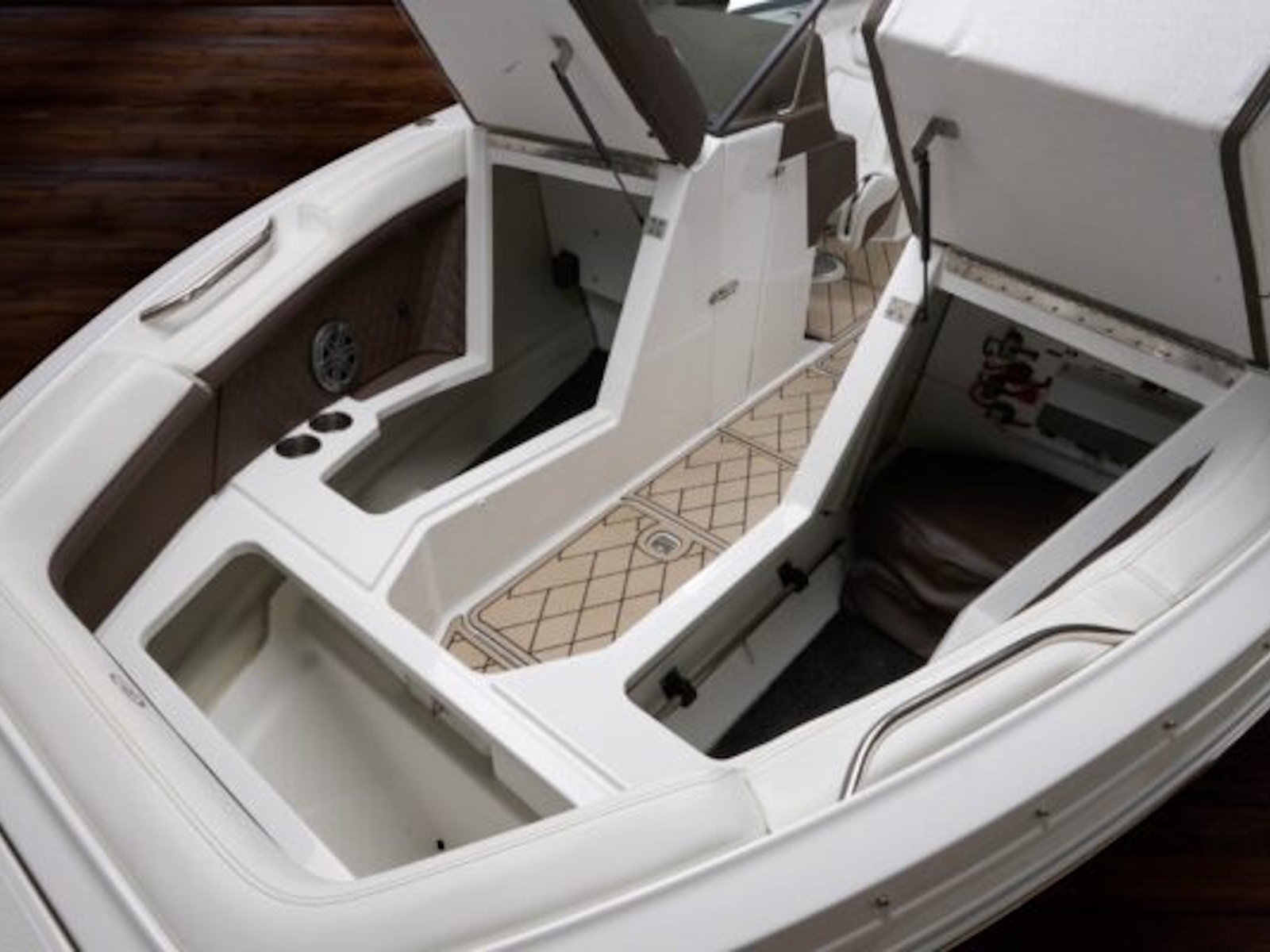

Bow Filler Cushion

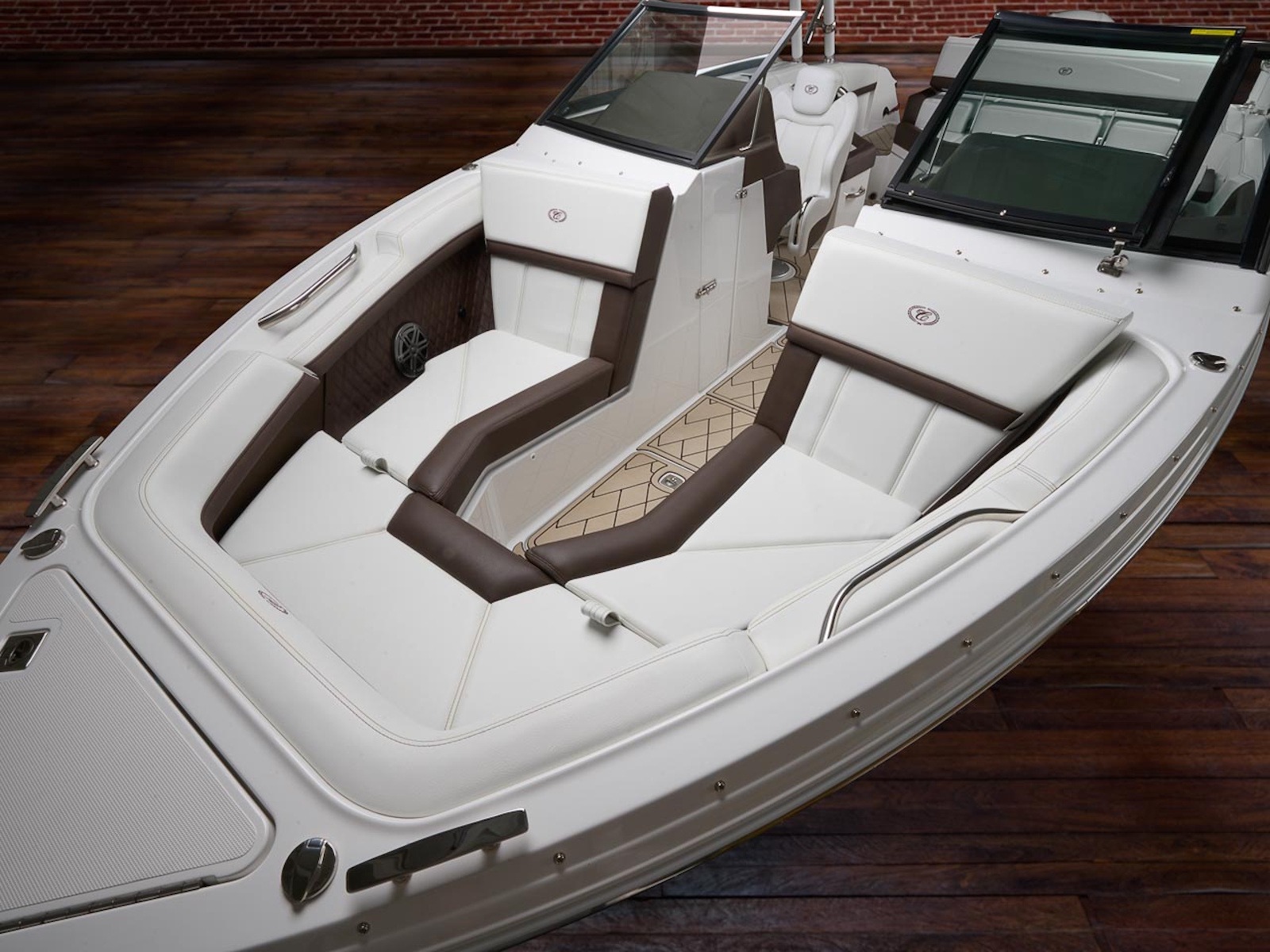

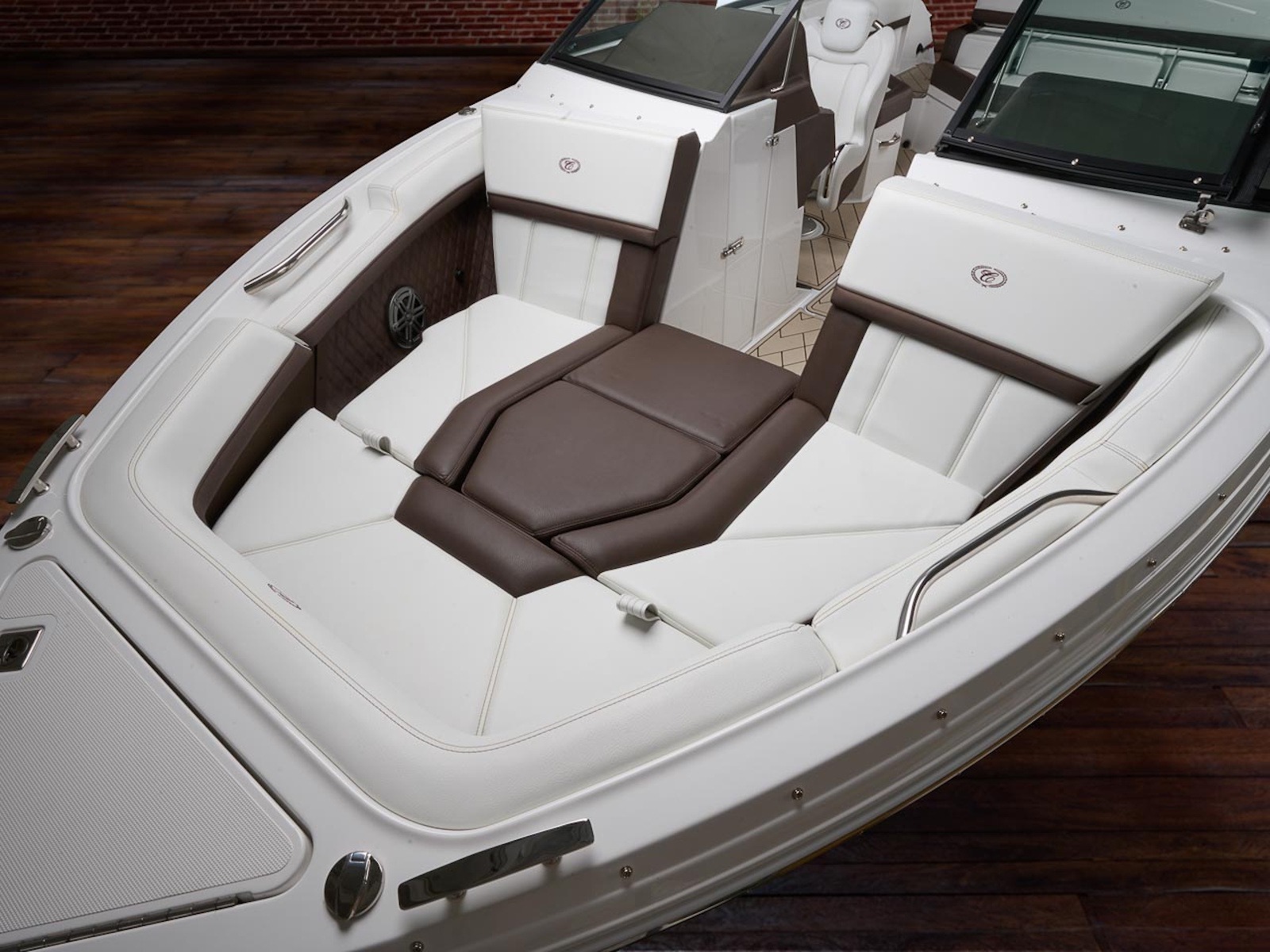

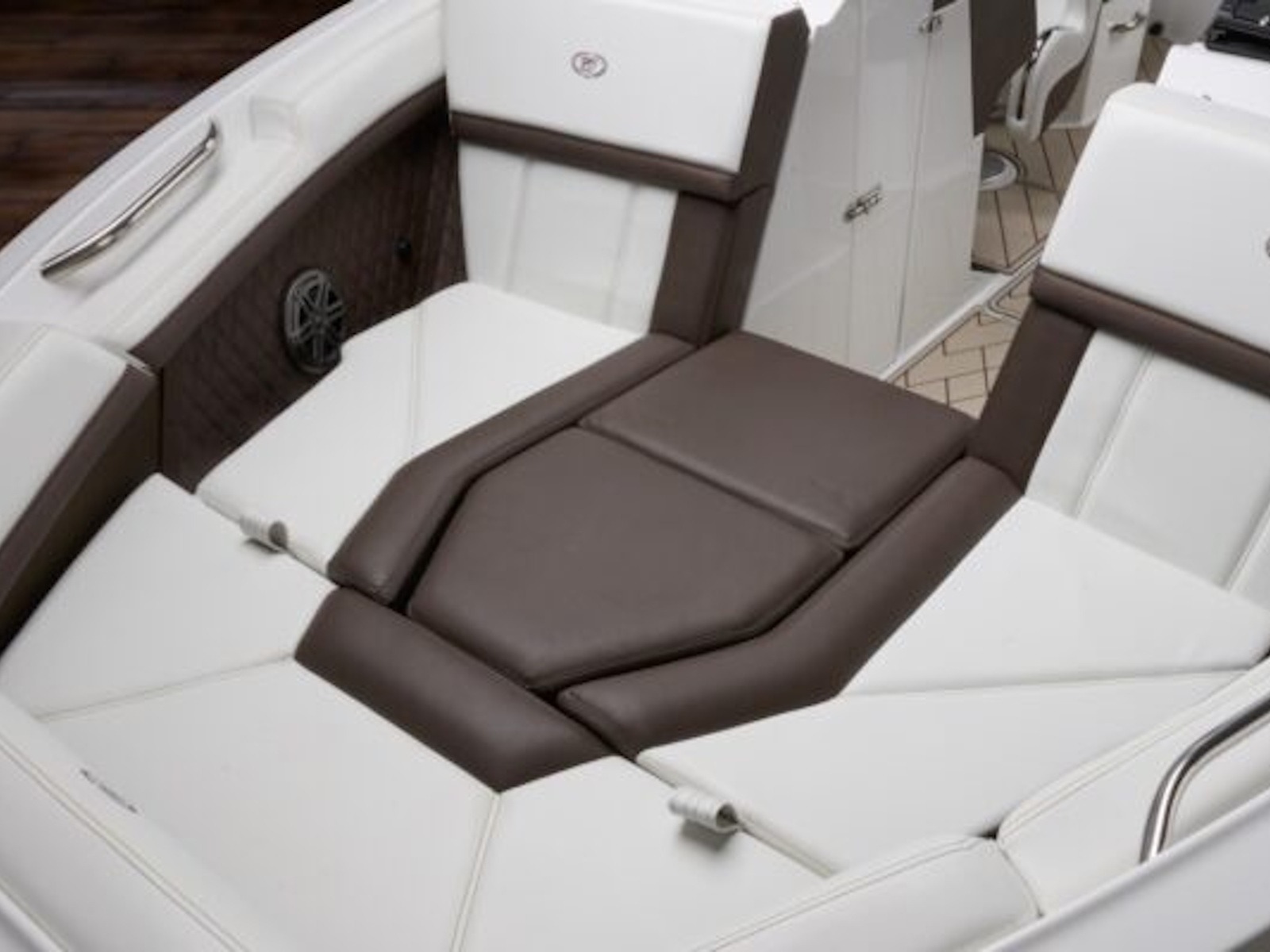

• The bow filler cushion expands the bow seating area, creating a larger, more comfortable lounge space for relaxing on the water.

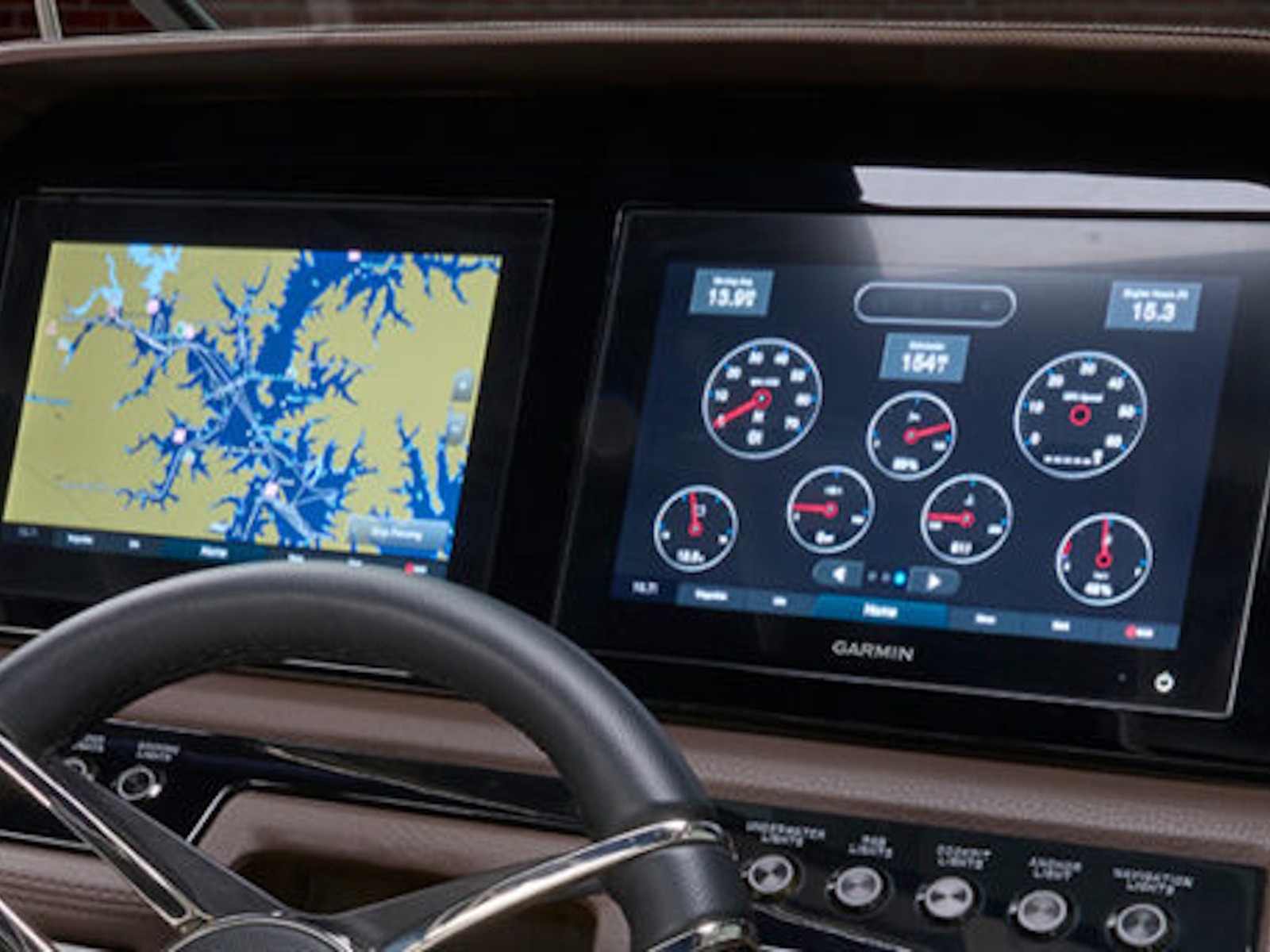

Garmin® Touchscreens

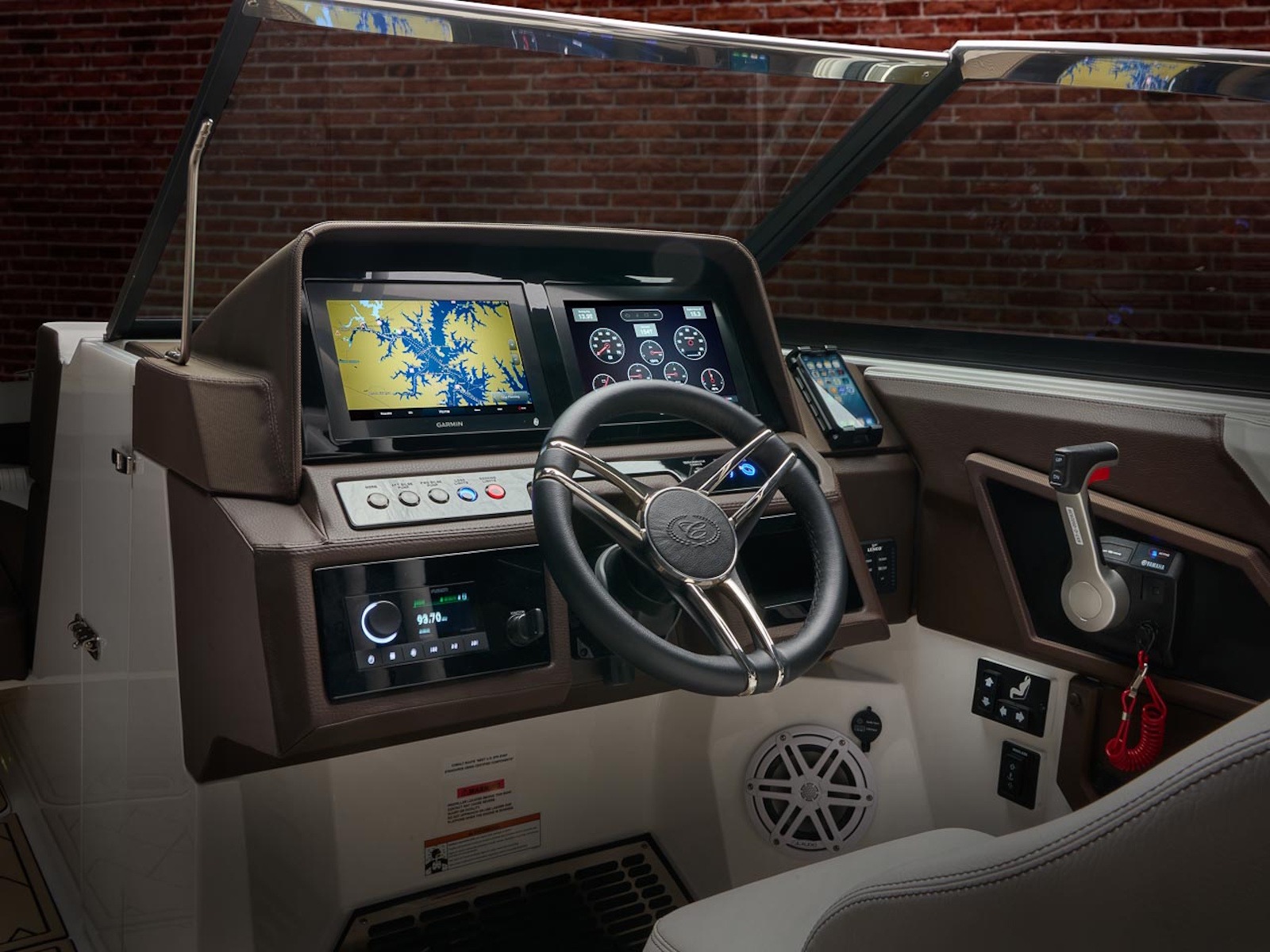

• Garmin touchscreens provide clear navigation, instrumentation, and system control through a responsive, easy-to-use display.

Fresco Chil Vinyl

• Fresco Chil vinyl is designed to stay cooler in direct sunlight while resisting bacteria, mildew, and stains. It improves comfort and durability in warm conditions.

R4 Coastal Standard Features:

• Length Overall w/Swim Platform: 24' 3'' / 7.39 m
• Beam: 8' 6'' / 2.59 m
• Fuel Capacity: 70 gal. / 265 L
• Bridge Clearance: 59'' / 1.50 m
• Bridge Clearance w/Tower: 100'' / 2.54 m
• Draft Drive Up: 19'' / 0.48 m
• Draft Drive Down: 34'' / 0.86 m
• Dry Weight (varies with options): 4986 lbs. / 2262 kg
• Boat Certified Capacity: 13 persons
• Boat Certified Capacity w/gear: 2100 lbs. / 953 kg

Power Selection – Mercury

• 200 Verado, Black w/PAS - 200 hp (149 PkW)
• 250 Verado, Black w/PAS - 250 hp (186 PkW)
• 300 Verado, Black w/PAS - 300 hp (224 PkW)
• 300 Verado, White w/PAS - 300 hp (224 PkW)
• 350 Verado, Black V10 w/PAS - 350 hp (261 PkW)
• 350 Verado, White V10 w/PAS - 350 hp (261 Pkw)

Power Selection – Yamaha

• F200 XCA, White D.E.C. INT - 200 hp (149 PkW)
• F250 XCA, White D.E.C. INT - 250 hp (186 PkW)
• F300 XCA, White D.E.C. INT - 300 hp (224 PkW)
• F350 XSA, White D.E.C. INT - 350 hp (261 PkW)

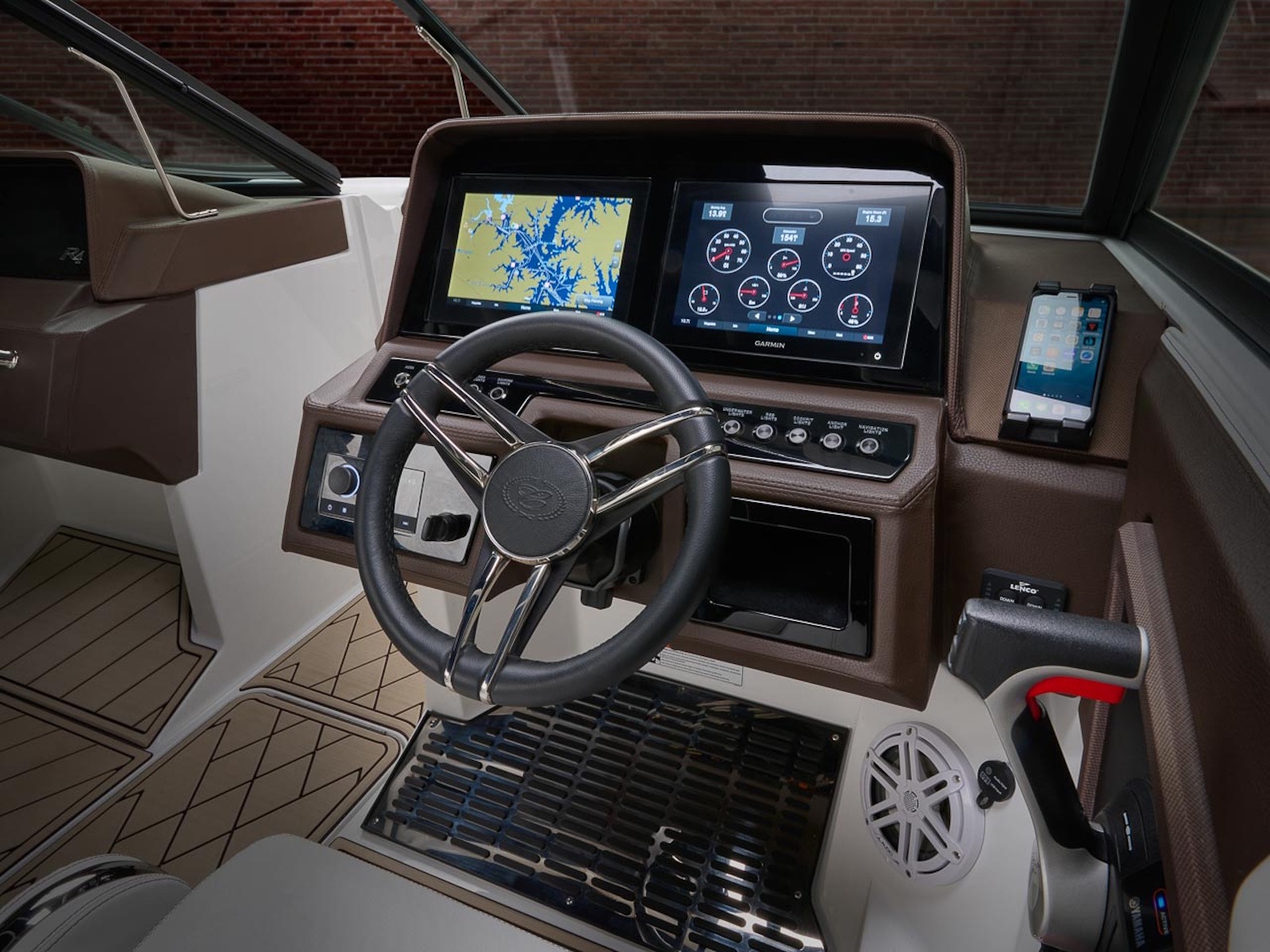

Dash & Instrumentation

• Accessory Power Plug - 12 Volt (dual) - Detail
• Composite Helm Eyebrow, Custom Stitching
• Depth & Water Temp Pkg.
• Glass Cockpit, Dual Garmin 743 - Detail
• Gloss Black Dash Console
• Hour Meter(s)
• Illuminated Switch Panel/Switches - Detail
• Stainless Steel Switches
• Steering Wheel, Black Leather/Stainless Steel - Detail
• Steering Wheel, Leather Color-Matched

Entertainment

• iPod/USB/MP3 Port - Detail
• Speaker Covers, Arch (Platinum Sound) - Detail
• Stereo Remote, Dash
• Prem Sound w/Transom Spkrs.

Interior

• Aft Sunpad Backrest SS Accent Rail
• Bow Walk-Thru Door
• Dash Storage Pocket
• Del Mar Helm Capt. Chair
• Ice Chest, Molded-In
• Passenger Seat Flip Backrest System - Detail
• Seating Varadense Comfort
• Sundeck Convertible Lounger - Detail
• Trash Receptacle, 3.5 gal

Exterior

• Anchor Locker
• Bow Scuff Plate, Stainless Steel - Detail
• Graphics, Molded-In Gelcoat
• Midship Cleats
• Swim Step, Stbd.
• Transhield Shipping Cover
• Windshield, Obsidian w/SS Accents
• COBALT Lettering, SS
• Fender Clips w/Line (4)

Structural & Safety

• 10/5/3 Year Warranty Protection
• Battery Switch, Dual w/ACR
• Circuit Breaker Protected Elec System
• Coastal Edition
• Composite Floor
• Composite Transom
• Fiberglass Cockpit Liner
• Fiberglass Stringer System
• Fire Extinguisher(s), Manual
• Ignition Safety Switch - Detail
• Kevlar Reinforced Hull
• Stainless Steel Windshield Braces - Detail

Optional:

Power Selection – Engine Enhancements (Optional)

• Engine Flush, Reverso
• Active Trim, Merc

Dash & Instrumentation

• Glass Cockpit, Dual Garmin 743 XSV
• Glass Cockpit, Dual Garmin 8610 - Detail
• Glass Cockpit, Dual Garmin 8610 XSV
• Wireless Phone Charger, w/Holder - Detail
• XM Weather - Detail
• Glass Cockpit, Dual Garmin 943

Entertainment

• Plat Sound w/Transom & Arch Spkrs-1 pr. (Spt Tower) - Detail
• Plat Sound w/Transom & Arch Spkrs-2 pr. - Detail
• Plat Sound w/Transom Spkrs. - Detail
• Prem Sound w/Transom & Arch Spkrs-1 pr.
• Satellite Radio System
• Speaker Covers, Spt. Tower (Plat. Sound)

Interior

• Aft Facing Rumble Seat - Detail
• Air Compressor w/Holder - Detail
• Bow Center Cushion Insert - Detail
• Dinette Table w/Teak Accent - Detail
• Dinette Table, Solid Teak - Detail
• Floor Covering, Sea Grass - Detail
• Helm Seat, Electric
• LED Interior Accent Lighting (RGB) - Detail
• Sof-Trac Mat, Cockpit - Detail
• Stainless Steel Foot Tread (helm only) - Detail
• Storage Compartment Lighting
• Throw Pillows, Weighted (10) - Detail
• Throw Pillows, Weighted (4) - Detail
• Wood Interior Accent Pkg. - Detail

Exterior

• Arch Elec, Alum Folding w/Bimini - Detail
• Arch, Alum, Folding w/Bimini - Detail
• Arch, Elec Folding w/Rotating Sunshade - Detail
• Arch, Folding w/Rotating Sunshade - Detail
• Board Rack Covers, PTM - Detail
• Boarding Ladder, Port
• COBALT Lettering, Satin Black (exterior) - Detail
• COBALT Lettering, Satin White (exterior)
• Docking Lights-Stainless Steel - Detail
• Flagpole w/Flag - Detail
• Model Designator, LED, Transom - Detail
• Rod Holders, Gunwales (1 pr.) - Detail
• Rod Holders, Spt. Tower (1 pr.) - Detail
• Ski Pylon - Detail
• Sof-Trac Mat, Gunwales
• Sof-Trac Mat, Swim Platform w/Flip-Down Swim Step - Detail
• Sport Tower w/Sunshade - Detail
• Swim Platform Transom Lighting
• Transom Shower - Detail
• Underwater Lighting, RGB - Detail
• Wakeboard Racks, Elite (Alum) - Detail
• Wakeboard Racks, PTM ClampForce 3.0 - Detail
• Wakeboard Racks, Triton 2 (Roswell)
• COBALT Lettering, Color-Matched
• E-Step Electric Swim Step - Detail

Canvas

• Bimini, Premium - Detail
• Bimini, Premium Easy-Fold - Detail
• Bow Tonneau Cover - Detail
• Cockpit Tonneau Cover - Detail
• Mooring Cover - Detail
• Shade Sail, Aft (req. Arch w/Sunshade) - Detail
• Shade Sail, Bow - Detail

Structural & Safety

• Battery Maintainer/Charger, 110v - Detail
• Battery Maintainer/Charger, 220v - Detail
• Bonding System w/Sacrificial Anodes *
• Rearview Mirror, PTM w/Custom Cover - Detail
• Rearview Mirror, Roswell w/Custom Cover
• Tool Kit - Detail
• Trim Tabs, Pro Control
• Windlass, All Chain w/Anchor - Detail
